	ScaleAero Supporting Vendor	Joined: September/09/2003 United States Posts: 9193 IP Logged
Posted: May/25/2021 at 6:27am		Quote

Wingspan 98in. Glow Moki 1.80 6 channels. Designer Mark Frankel.

I assume Mike's is an enlargement of Mark Frankel's planset available free online. It is always simpler to build something which has a readily available resource for a canopy, cowl, and in this case, Styrene corrugation.

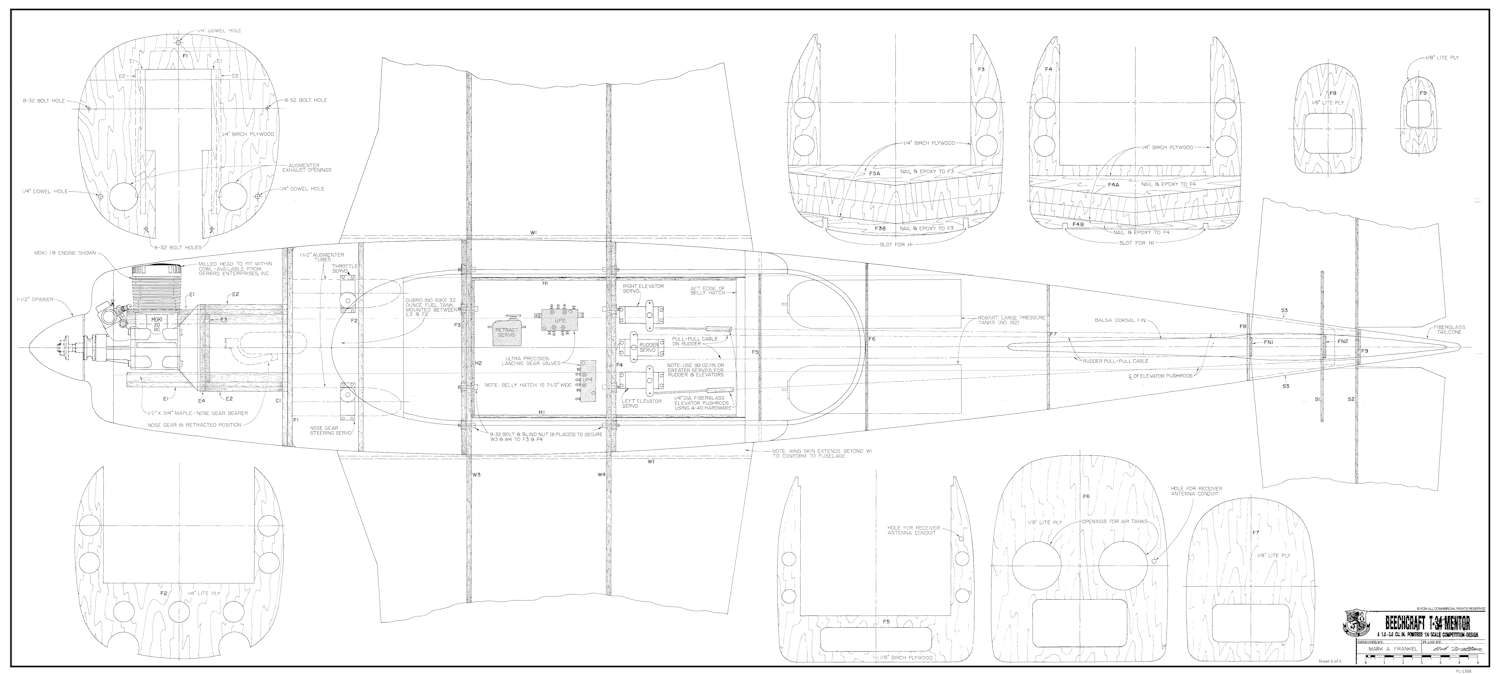

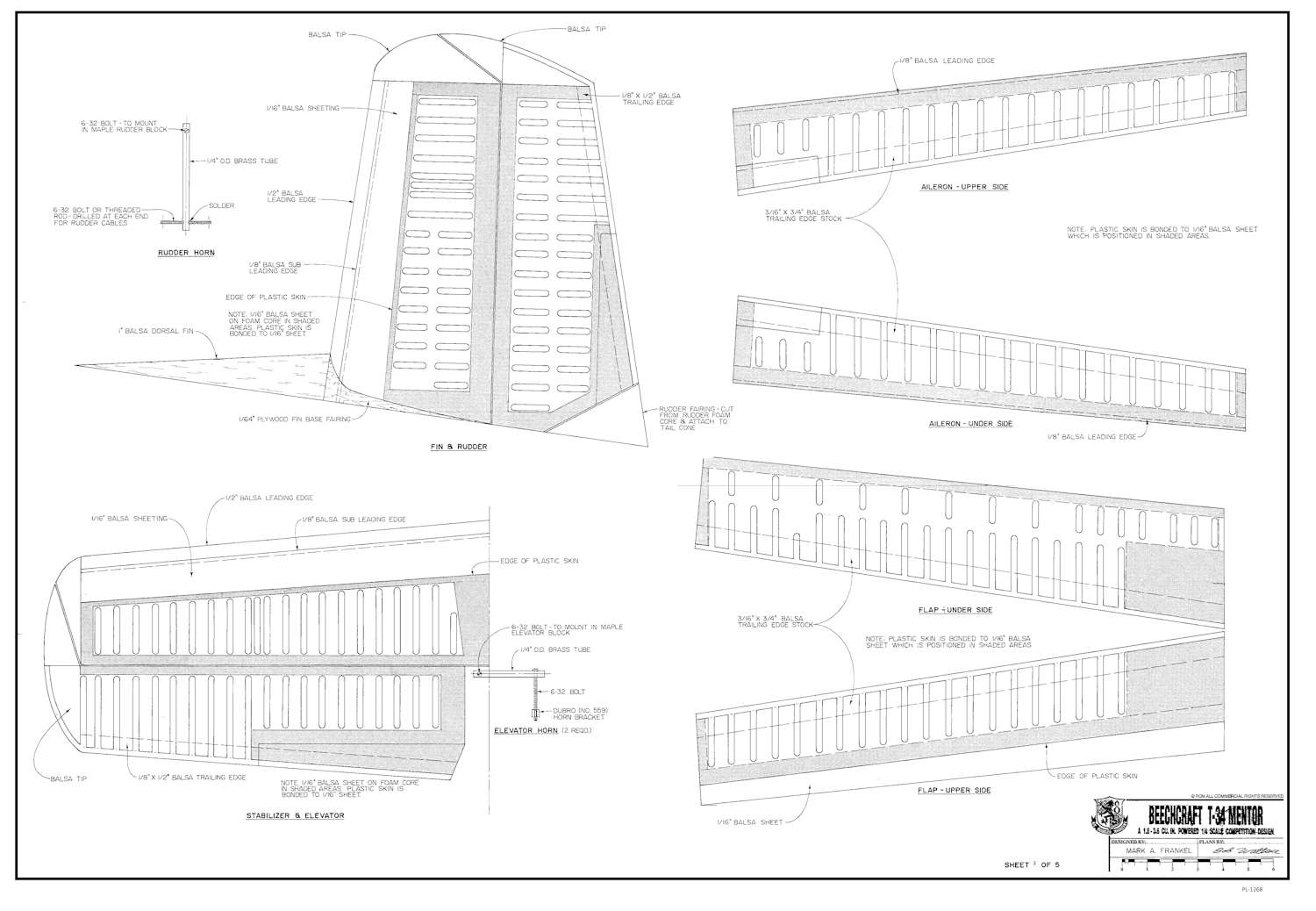

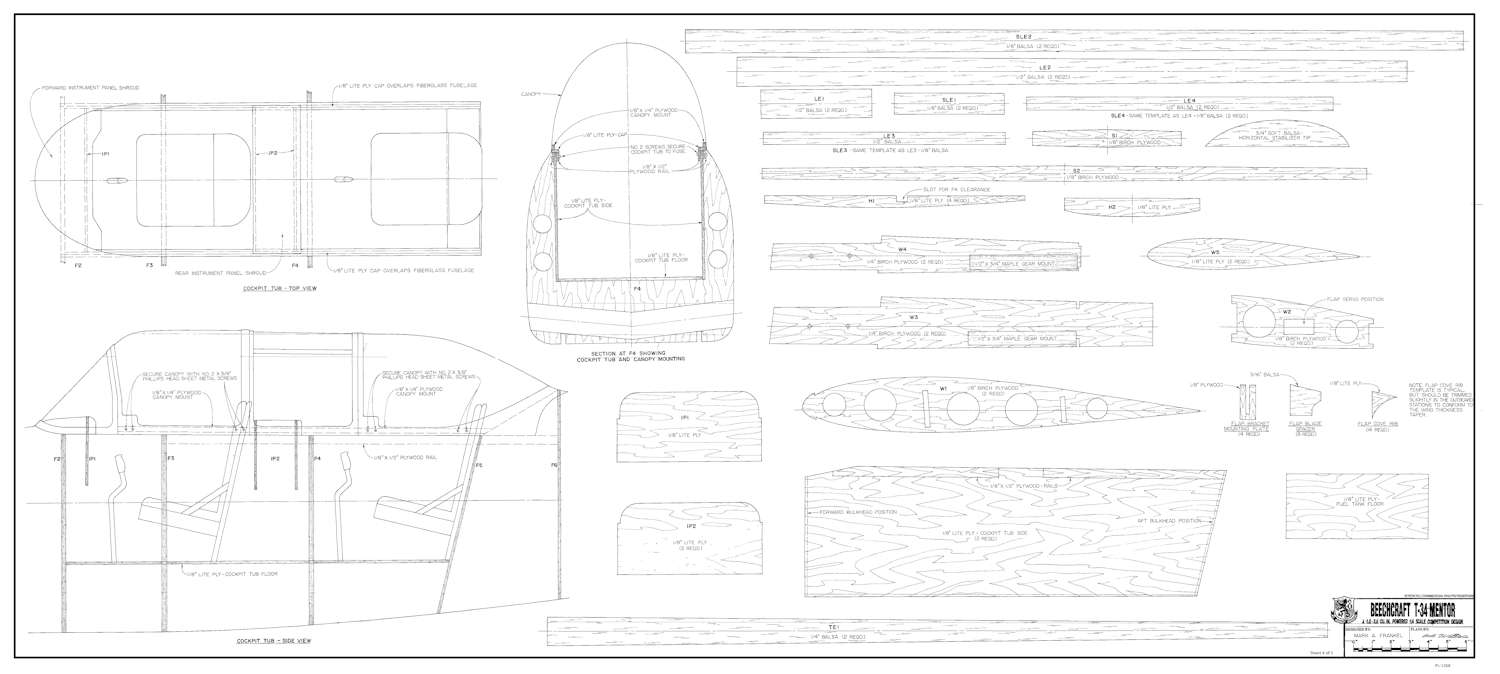

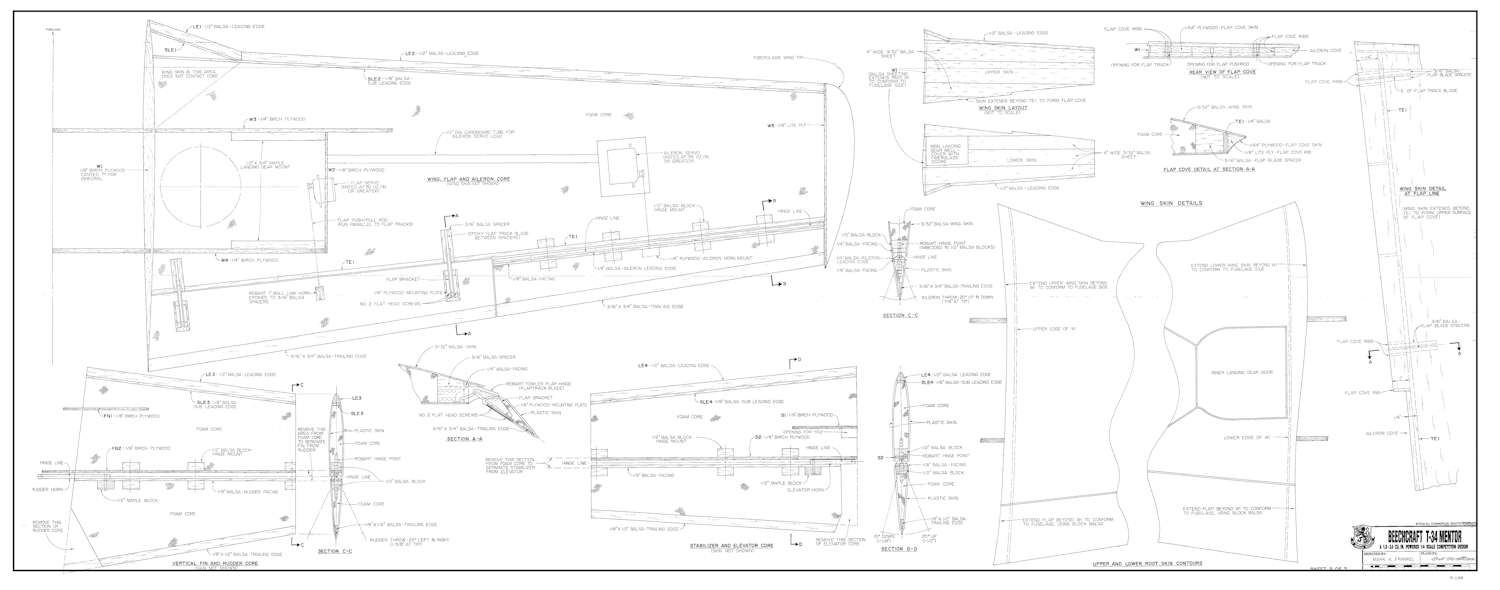

Simply download the .pdf files, decide on the size you want and send them to be laser cut...

__________________
Ed
http://www.flitemetal.com
http://www.mac-models.com

	MaxSouthOz Lifetime Site Supporter	Joined: February/07/2018 Australia Posts: 969 IP Logged
Posted: May/25/2021 at 6:44am		Quote

Hi Ed

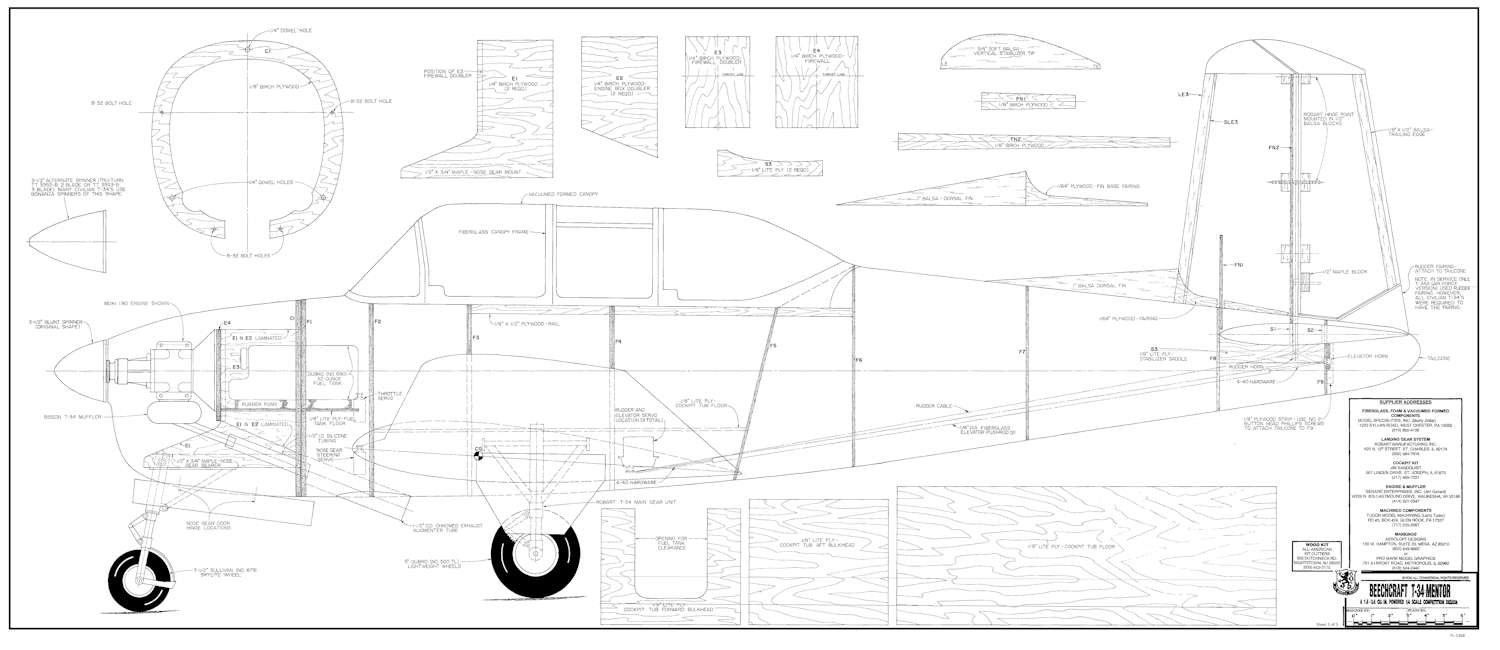

The wheels appear to be on different levels.

Why would that be?

Cheers

__________________
Max
Clayton Bay
South Australia

	ScaleAero Supporting Vendor	Joined: September/09/2003 United States Posts: 9193 IP Logged
Posted: May/25/2021 at 7:16am		Quote

Different levels? Every plan sheet image has to be "scaled" to an identical level/size.

__________________
Ed
http://www.flitemetal.com
http://www.mac-models.com

	MaxSouthOz Lifetime Site Supporter	Joined: February/07/2018 Australia Posts: 969 IP Logged
Posted: May/25/2021 at 7:24am		Quote

The front wheel is lower than the mains by about a tyre width.

The base lines look to be parallel. Odd, no?

__________________
Max
Clayton Bay
South Australia

	ScaleAero Supporting Vendor	Joined: September/09/2003 United States Posts: 9193 IP Logged
Posted: May/25/2021 at 7:34am		Quote

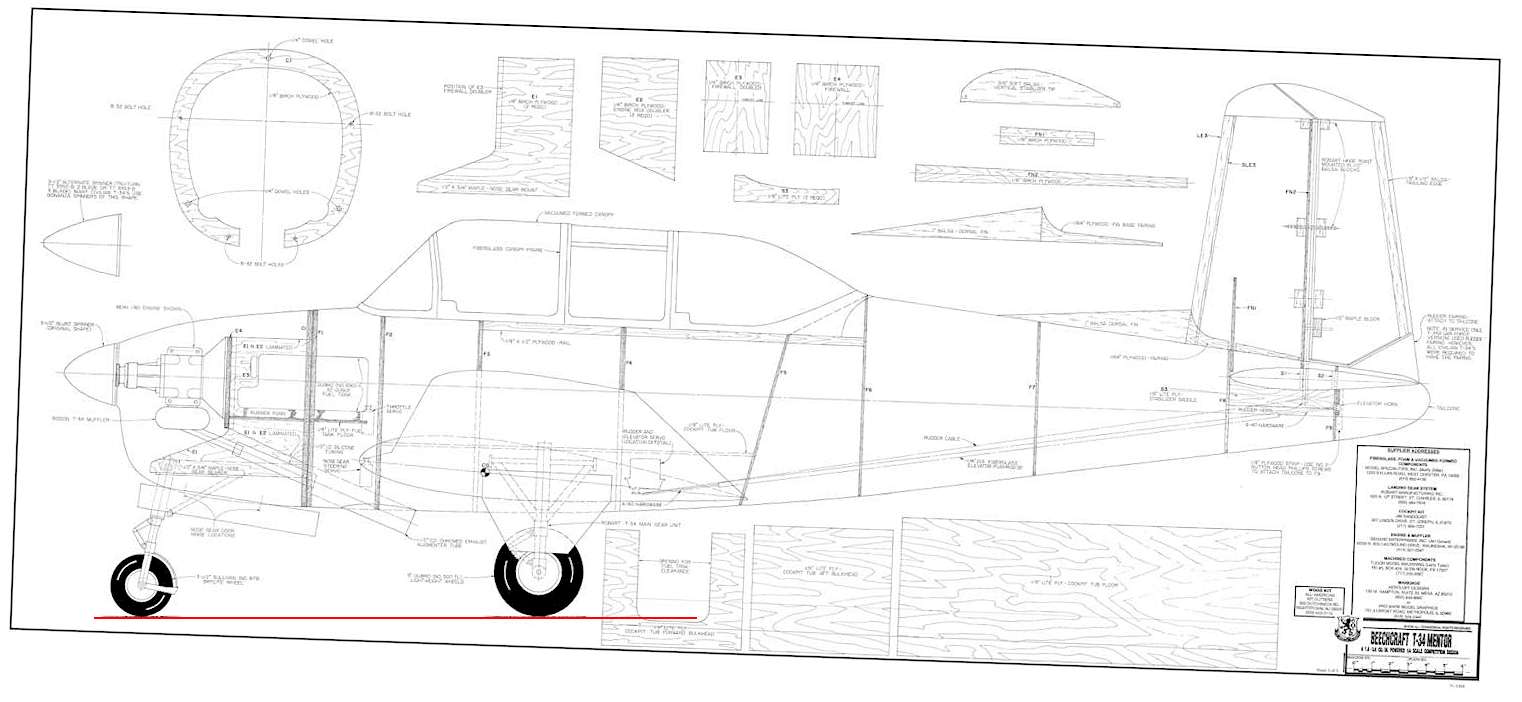

This should clear up the "stance" of the at rest 34.

__________________
Ed
http://www.flitemetal.com
http://www.mac-models.com

	MaxSouthOz Lifetime Site Supporter	Joined: February/07/2018 Australia Posts: 969 IP Logged
Posted: May/25/2021 at 7:45am		Quote

Aha! So, they do that so that the datum line coincides with the top and bottom of the page?

Interesting.

Thanks.

__________________
Max
Clayton Bay
South Australia

	Sparky Lifetime Site Supporter Head Curmudgeon	Joined: February/10/2004 United States Posts: 7346 IP Logged
Posted: May/25/2021 at 7:53am		Quote

No, No mystery at all.
The airplane center line is level and the plane sits at a positive angle on the ground so the odd look.
Likely drawn with the struts fully extended as well not with the struts under load.

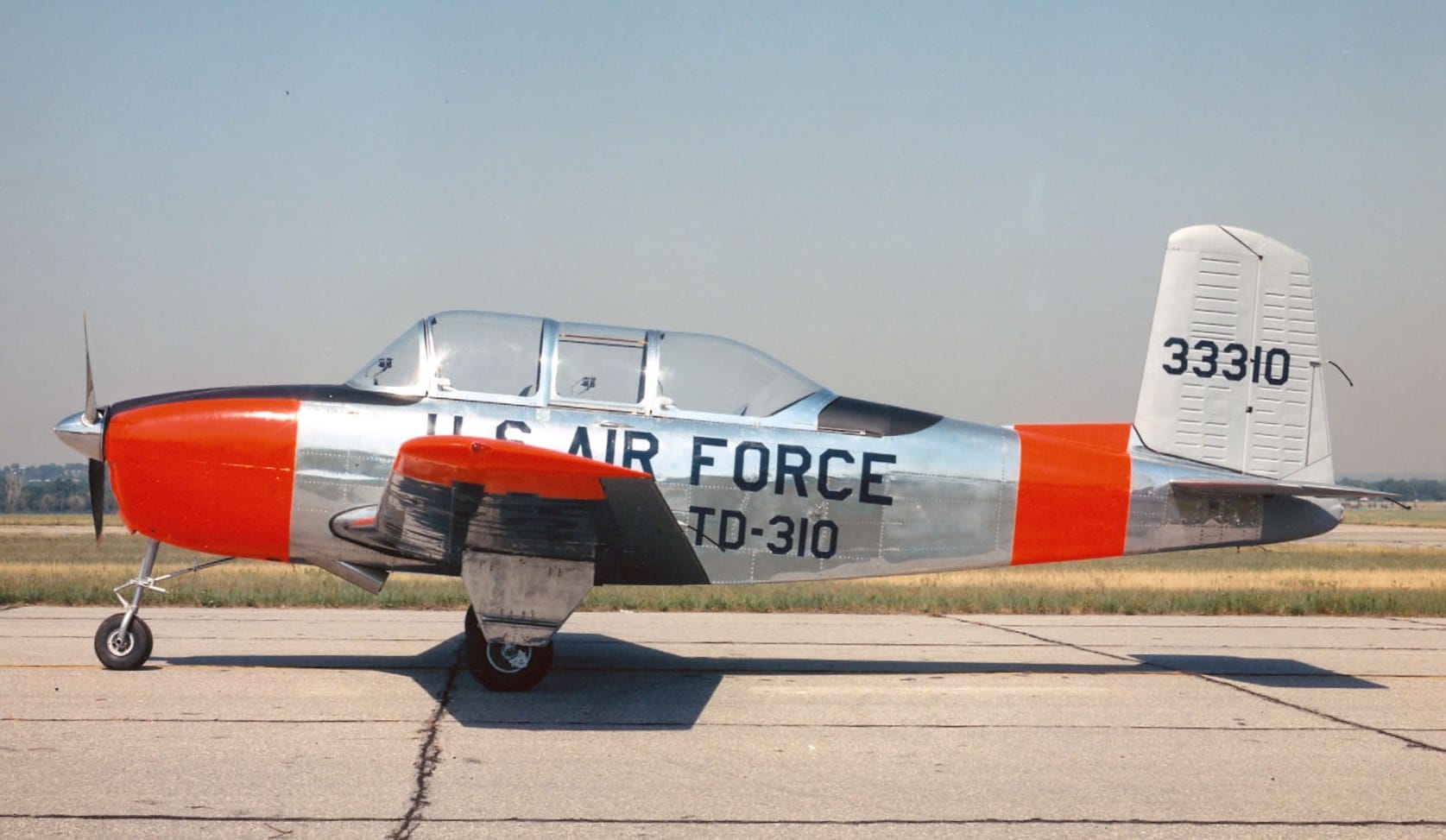

Look at pictures to get the right fuselage attitude.
Sparky

PS it looks like Ed beat me to it while I was composing my response.

__________________
Brown County, Indiana
TopRC FW-190, Zenoah GT-80
Bates F6F Hellcat, Saito FG60-R3
Gamma RIP

	Sparky Lifetime Site Supporter Head Curmudgeon	Joined: February/10/2004 United States Posts: 7346 IP Logged
Posted: May/25/2021 at 8:00am		Quote

BTW the 98" span T-34 would be underpowered with a MOKI 1.8. Even a 2.10 would be hard pressed to make enough power to fly this plane around.
Fitting a powerplant in the airplane without parts exposed would be a challenge. My buddy is wrestling with a Hosteteler Bonanza which is essentially the same airframe and also the Nose gear so far forward complicates things, even with a twin gasser.
Sparky

__________________
Brown County, Indiana
TopRC FW-190, Zenoah GT-80
Bates F6F Hellcat, Saito FG60-R3
Gamma RIP
