Posted: January/05/2014 at 8:09pm  Quote

   I just wanted to post a couple of my favorite "Lazy Day" flyers. The red Cub was scratch built by a fellow club member from Sid Morgan plans in 1976. It is 1/4 scale, and he built it as 3 channel only- R-E-M, and used it primarily as a trainer for the newbie fledgling pilots that joined our club. It had been in several crashes, patched up over and over, and kept on flying. After 7 years of total abuse, I finally managed to convince hime to sell it to me. I took off the old yellow covering, and started refurbishing the airframe. The wings were quite warped, many patched ribs, as well as the wing tips, and leading edges.
  The fuselage had as many patches, especially the turtle deck stringers, and landing gear supports. The motor mount was pretty well banged up, so I replaced it, and all of the fuselage stringers. After a final sand, and wipe down, I decided that I wanted something a little different for this Cub. I never did see a Red Cub, so I opted to do it in all red, with black trim. I also made a nice landing gear setup with tempered aluminum(old stop sign), and added wheel pants. After looking the airframe all over, I decided I would add ailerons, and scaled the dimensions from a drawing. There were never struts on it originally, so I made a set of struts for it, and installed the mounting blocks in the wings. I wanted it to be at least "Stand off scale". The old motor was a faithful K&B 60, and was pretty well wore out. I had several new HB 61 PDP motors, and decided that would be more than enough power to fly this thing comfortably. I installed a new 20 oz tank, motor mount, and a new cowl from Fibreglass Specialties.
   The Monokote covering went on well, and I cut the lettering, numbers, and side trim from Monokote trim sheets. Everyone at the field was totally surprised to see a red Cub, and I got a lot of great compliments. The maiden flight was absolutely perfect, with only a minor elevator trim needed. I did this in 1983, and I'm still flying it today, same covering, same motor, upgraded Futaba Gold FP6FG 72MHZ radio.

    The second favorite is my Piper Vagabond- scratch built in 1982 from RCM plans, 1/5 scale. I bought this one also from a club member, also a 3 channel plane, and I used it as a trainer for the new trainees. It has served me well for the last 30 yrs. It was originally dark blue and cream, and had one mishap when a servo failed. Did minor damage to wingtip, and noseblock, and landing gear. I stripped the covering, made the minor repairs, and recovered it with Metallic green monokote, and white. I also added the strut supports to the wing, and made the same tempered landing gear as the Cub. I removed the old Fox Eagle 60 , and installed another HB 61 PDP engine in this one too. I still fly both of these weekly, and have had many newbie pilots qualify for our club requirements.  Dean
">">">">">">

__________________
deanz406

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline Chad Veich
Lifetime Site Supporter
Lifetime Site Supporter
 Joined: September/18/2003
National Flag of United States United States
Posts: 3277
IP Logged
Posted: January/05/2014 at 9:01pm  Quote

Two beautiful birds, very nice, and I love the paint schemes on both. I still have a HB .40 PDP "Blitz" stuffed away in a drawer somewhere. They were (are?) great motors.

__________________
Chad Veich
www.cwvmodels.com
Scale Model Design & Construction

If it ain't broke, go fly it!

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline deanz406
Basic Member
Basic Member
 Joined: October/13/2010
National Flag of United States United States
Posts: 11
IP Logged
Posted: January/05/2014 at 9:12pm  Quote

    Thank You--  I usually prefer to dream up my own color schemes. Not all of my planes are "True Scale", but I
 do try to keep them a reasonable facsimile. I'll post more, if I can figure out the format here on the site-- Dean

__________________
deanz406

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline tpmtpm1955
Basic Member
Basic Member
 Joined: October/18/2022
National Flag of United States United States
Posts: 4
IP Logged
Posted: September/22/2024 at 5:39pm  Quote

just bought this red cub today/hope it flys well and holds up/am building a piper vagabond from the same bryce pertersen plans  thanks

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline MaxSouthOz
Lifetime Site Supporter
Lifetime Site Supporter
 Joined: February/07/2018
National Flag of Australia Australia
Posts: 969
IP Logged
Posted: September/23/2024 at 1:18am  Quote

Nice!

Is anyone else seeing the Photobucket watermarks?


__________________
Max
Clayton Bay
South Australia



Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline Admin
Admin Group
Admin Group
RCSB Owner/Founder 		Joined: July/22/2003
National Flag of United States United States
Posts: 5505
IP Logged
Posted: September/23/2024 at 3:04am  Quote

Quote: MaxSouthOz
Nice!

Is anyone else seeing the Photobucket watermarks?

Yes, Photobucket started doing that about 6 years ago when a photo is linked from their site.

Cheers,
Mike


__________________
Mike Chilson,
RCSB Owner/Founder
--------------------
My R/C Scale Aircraft Over The Years

Back to Top  Printer Friendly Version  Profile  Search  Web

Avatar User Offline MaxSouthOz
Lifetime Site Supporter
Lifetime Site Supporter
 Joined: February/07/2018
National Flag of Australia Australia
Posts: 969
IP Logged
Posted: September/23/2024 at 4:43am  Quote

I dumped them years ago.

I used to have my own model railroad forum.  It wasn't horrendously expensive to host photos.

I'm surprised Photobucket has survived.


__________________
Max
Clayton Bay
South Australia



Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline ScaleAero
Supporting Vendor
Supporting Vendor
 Joined: September/09/2003
National Flag of United States United States
Posts: 9192
IP Logged
Posted: September/23/2024 at 11:16am  Quote

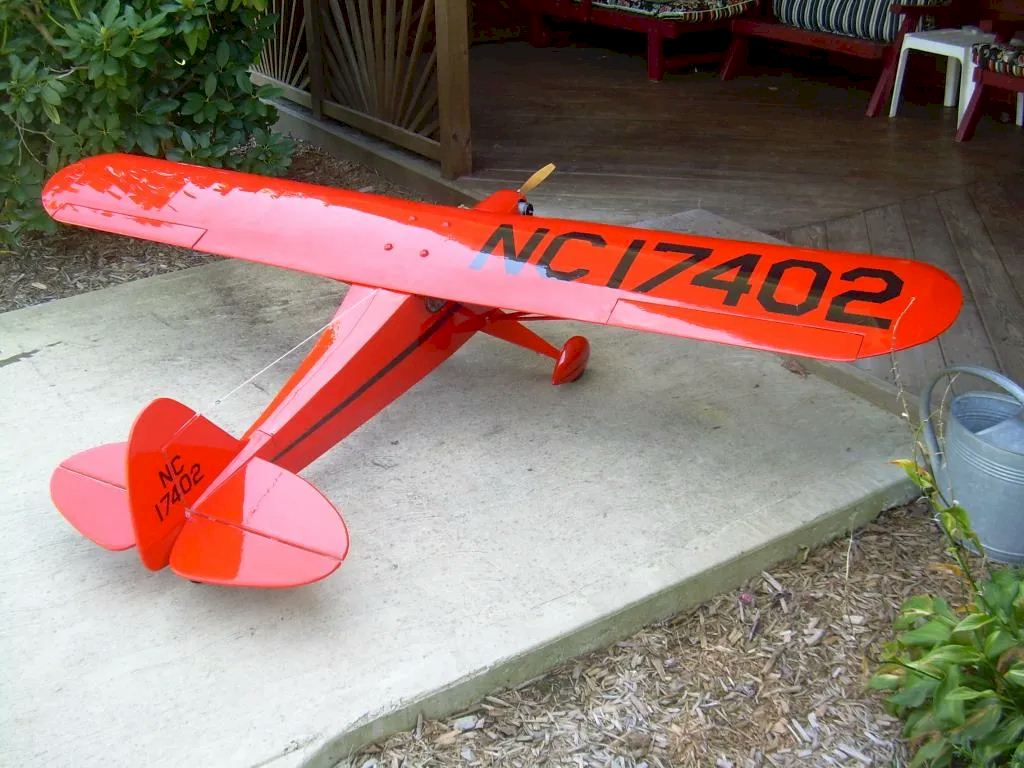

Right clicking the image to open in a new tab. Then open new tab...copy paste to editor, save as. ;^) More than 1 way to skin it.
This J3 must weigh a ton with that mirror coat.



__________________
Ed
http://www.flitemetal.com
http://www.mac-models.com

Back to Top  Printer Friendly Version  Profile  Search  Web

 ]
] ]
