Home>Forums>Show Your Stuff!!!>Stampe Maiden Search Within This Topic
Post Reply   New Topic
Forum Jump 2 Pages 1 2
] ] ]
]
Author / Post
Avatar User Offline MaxOperator
Site Supporter
Site Supporter
Joined: April/03/2024
National Flag of United States United States
Posts: 24
IP Logged
Posted: May/14/2024 at 3:40am  Quote



Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline MaxOperator
Site Supporter
Site Supporter
Joined: April/03/2024
National Flag of United States United States
Posts: 24
IP Logged
Posted: May/14/2024 at 3:41am  Quote

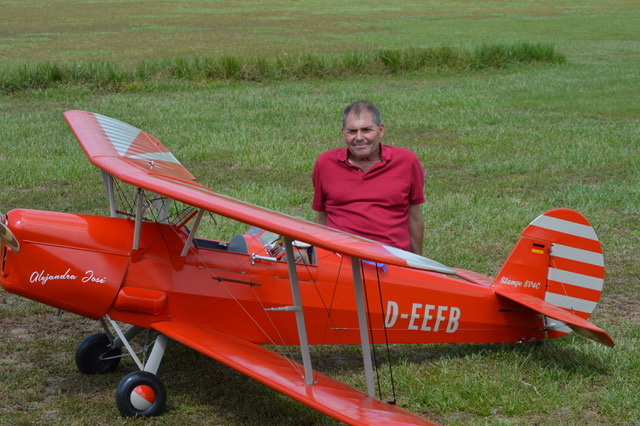

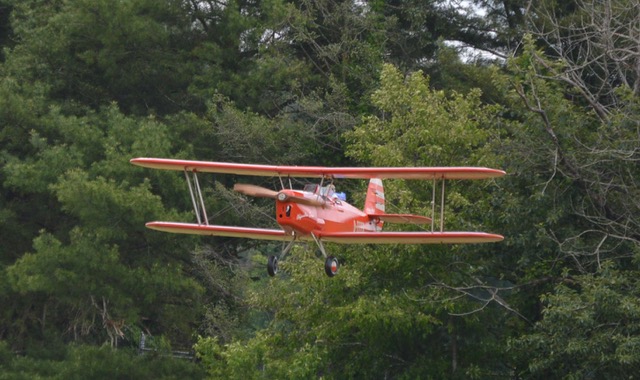

Post maiden relax..this is 9 months of work...

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline mchandrayan
Site Supporter
Site Supporter
Joined: January/28/2007
National Flag of India India
Posts: 730
IP Logged
Posted: May/14/2024 at 4:03am  Quote

Congratulations on the maiden. That is a large model, what scale is it? 1/3 or slightly larger?

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline Richard Crapp
Lifetime Site Supporter
Lifetime Site Supporter
Richard Crapp
Joined: October/30/2004
National Flag of United Kingdom United Kingdom
Posts: 5449
IP Logged
Posted: May/14/2024 at 4:39am  Quote

Very nice, A few more (lots) details please..............

__________________
THE 2026 WORLD CHAMPIONSHIP

https://worldscale26.bmfa.uk/




Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline LBJ
Lifetime Site Supporter
Lifetime Site Supporter
Joined: August/21/2012
National Flag of United States United States
Posts: 5487
IP Logged
Posted: May/14/2024 at 6:30am  Quote

Beautiful job on the Stampe! Engine? Lane

__________________
LBJ Fort Worth, TEXAS
There are always TWO sides to every story. Proverbs 18:17
Current Projects
Ziroli Hellcat

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline Slowflight
Site Supporter
Site Supporter
Joined: December/02/2010
National Flag of United States United States
Posts: 2555
IP Logged
Posted: May/14/2024 at 8:14am  Quote

Beautiful plane, congratulations !!!!!

__________________
Roger
South Florida
____________
Hangar:
1/4 Piper SC, 1/4 Navy Replica Piper J3, Travel Air D4D
Waiting maiden 1/3 L4 Piper, 1/5 NA50
Waiting , 1/3 Bucker Jungmann 1/3 Spacewalker

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline MaxOperator
Site Supporter
Site Supporter
Joined: April/03/2024
National Flag of United States United States
Posts: 24
IP Logged
Posted: May/14/2024 at 1:10pm  Quote

Thank You all.

She is 37%. I am using the Schlunndt G62 Belt drive spinning a 34x20 prop. What is super cool is that the reduction actually spins the prop at scale speed, IE full throttle 2700rpm and It idles down to 5-600 rpm.

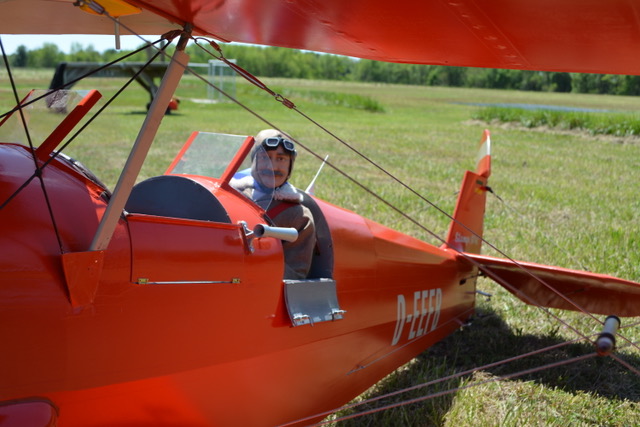

I covered here with Stits and dope, has ribstitching, tapes a few inspection rings. Paint is dope, about 6 coats, wet sanded, sprayed, wet sanded, sprayed etc. tail number is masked at and sprayed as well as the starburst and tail stripes. I was able to get the pilot from Twin Pilot in Germany, no, he is not my twin.

Dual Futaba RX, Dual Fromeco LiOn, 5200mahs each. I have each receiver controlling one half of the plane. I am using JR Servos all around.

I have a homemade smoke pump powered by an outrunner and a 1200mah 3S.

the instrument panels came from Aerocockpit, and I made some other bits and pieces with the use of a 3d printer.

She weighs 51lbs ready to fly.

I' ll be at Cen-Del WAC  Fredricksburg, Goshen, and Tullahoma if you'd like to see her fly.


Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline Richard Crapp
Lifetime Site Supporter
Lifetime Site Supporter
Richard Crapp
Joined: October/30/2004
National Flag of United Kingdom United Kingdom
Posts: 5449
IP Logged
Posted: May/14/2024 at 2:58pm  Quote

Is it a Kit, Plan or own designed?

At 51 lb what will it do, Big loops,?  Knife edge?

Just interested because i have been flying mine recently , 33% and 32 lb with Roto 85cc


__________________
THE 2026 WORLD CHAMPIONSHIP

https://worldscale26.bmfa.uk/




Back to Top  Printer Friendly Version  Profile  Search

]
] ]
