Posted: July/19/2015 at 3:53am  Quote

Hi Greg,

Welcome! Both planes are a nice subject. Since others mentioned the CL415 water bomber I am providing you the link to the PBY Catalina build thread. As you will see the build is well documented:


As an added bonus you can also meet the author (SWEEPER) in the chat room should you need some of his experience. Nice guy!

Reuben


Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline FL510
Site Supporter
Site Supporter
 Joined: July/26/2012
National Flag of United States United States
Posts: 815
IP Logged
Posted: July/19/2015 at 8:39am  Quote


Greg,

I put some pics up of my cl415 later. I have about 80% done including the retracts and wqter pic up.

Jed


__________________
Jed
1/6 Ziroli PBJ-1H (B-25)
Flying: 1/6 FB F-5
Next: Palmer F9F-8 Cougar

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline 2manybikes
Lifetime Site Supporter
Lifetime Site Supporter
 Joined: July/17/2015
National Flag of Australia Australia
Posts: 15
IP Logged
Posted: July/21/2015 at 6:07am  Quote

Quote: Sabre
Hi Greg,

Welcome! Both planes are a nice subject. Since others mentioned the CL415 water bomber I am providing you the link to the PBY Catalina build thread. As you will see the build is well documented:


As an added bonus you can also meet the author (SWEEPER) in the chat room should you need some of his experience. Nice guy!

Reuben

Thanks for the link Reuben. I'm in awe of people who take on a project of that size.  And he did a fantastic job of it too.


__________________
Greg

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline 2manybikes
Lifetime Site Supporter
Lifetime Site Supporter
 Joined: July/17/2015
National Flag of Australia Australia
Posts: 15
IP Logged
Posted: July/21/2015 at 6:11am  Quote

Quote: FL510

Greg,

I put some pics up of my cl415 later. I have about 80% done including the retracts and wqter pic up.

Jed

Thanks Jed.  Look forward to seeing it.  I think I'll end up with the same CL415 package you have rather than the PBY. Not sure I'll go with the water bomb feature but I'll definitely have the retracts.

Cheers,

Greg



__________________
Greg

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline FL510
Site Supporter
Site Supporter
 Joined: July/26/2012
National Flag of United States United States
Posts: 815
IP Logged
Posted: July/21/2015 at 2:08pm  Quote



Greg,

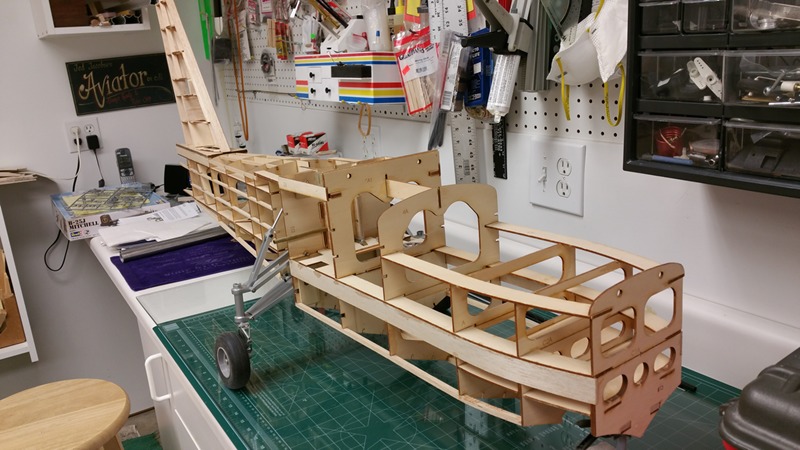

Here are a few pics of what I have built.

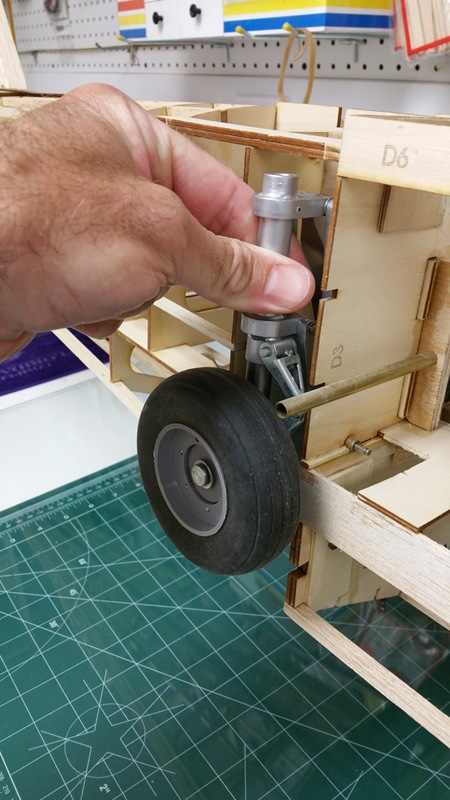

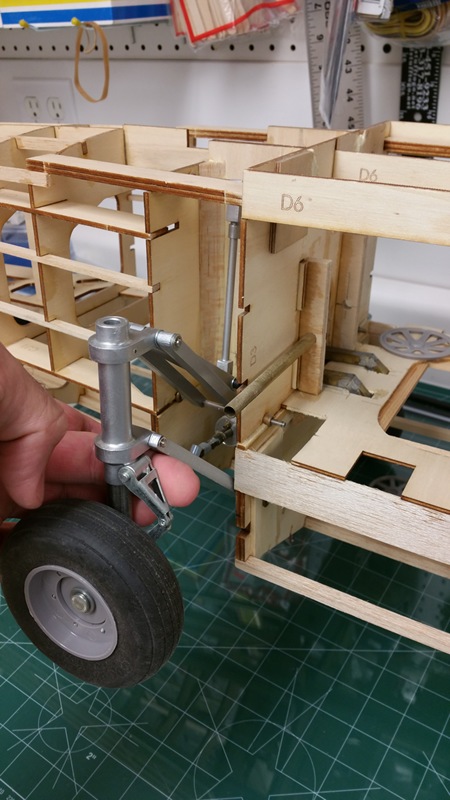

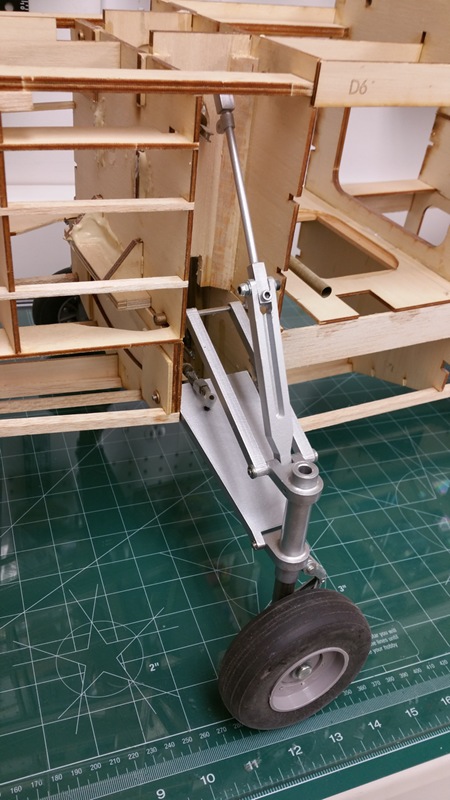

The gear are built to the supplied plan. The struts are modified 1/2 inch robart and the wheel is also robart.

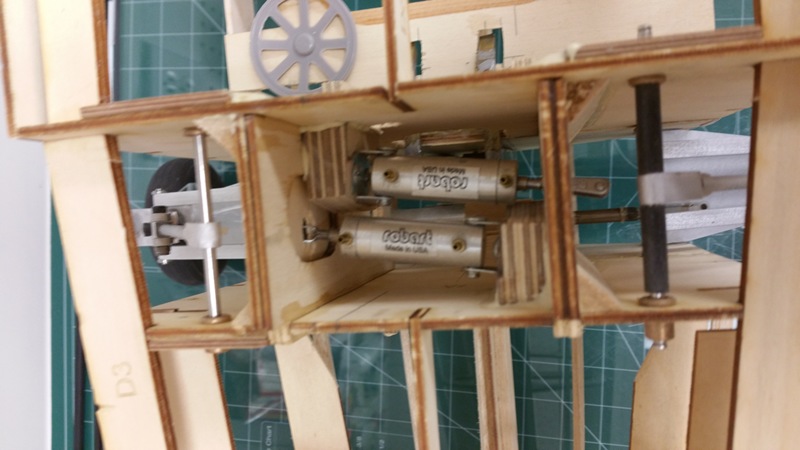

It use big BVM rams down low, you can barely see them under the smaller Robarts. The smaller are the gear over center lock outs.

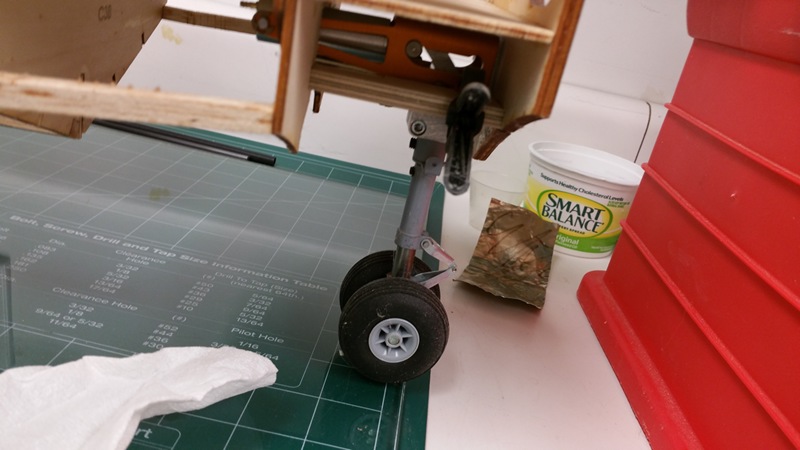

Nose is a standard robart.

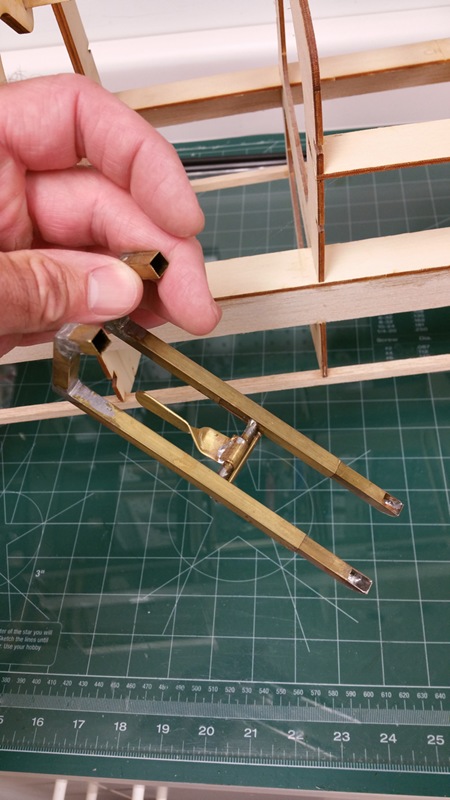

My own design of the water scoops. You can build the tank yourself without buying his.


Cheers,



__________________
Jed
1/6 Ziroli PBJ-1H (B-25)
Flying: 1/6 FB F-5
Next: Palmer F9F-8 Cougar

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline 2manybikes
Lifetime Site Supporter
Lifetime Site Supporter
 Joined: July/17/2015
National Flag of Australia Australia
Posts: 15
IP Logged
Posted: July/23/2015 at 5:30am  Quote

Thanks for the photos Jed.  Nice work.  Unfortunately it will be a while before I can start. Perhaps we can correspond when I get a bit closer to it.  I'd be interested in your thoughts on engines.  I was thinking about a pair of OS FSa 81ps for this.


__________________
Greg

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline aeroplane88
Basic Member
Basic Member
 Joined: January/06/2008
National Flag of Canada Canada
Posts: 392
IP Logged
Posted: July/23/2015 at 7:35am  Quote

Jed, amazing work. I love the retracts.
-Lindsay


Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline FL510
Site Supporter
Site Supporter
 Joined: July/26/2012
National Flag of United States United States
Posts: 815
IP Logged
Posted: July/24/2015 at 2:51pm  Quote


Lindsay Thanks!

Greg,

That would be fine just shooot me a PM. I know the plane was made for an .46 glow like an O.S. When I finally get around to finishing mine, I'm going to use .46 size electrics, like a rimfire or similar.

Cheers,


__________________
Jed
1/6 Ziroli PBJ-1H (B-25)
Flying: 1/6 FB F-5
Next: Palmer F9F-8 Cougar
