Posted: October/25/2018 at 11:13am  Quote


Hi All

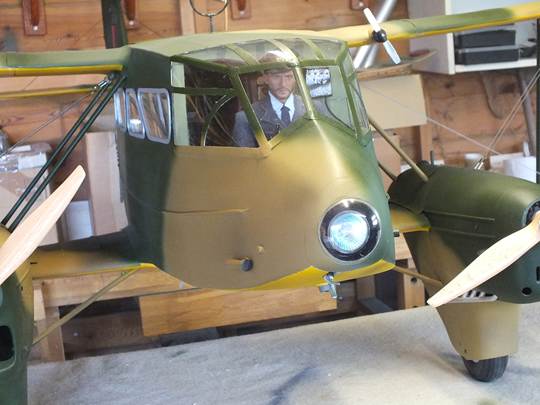

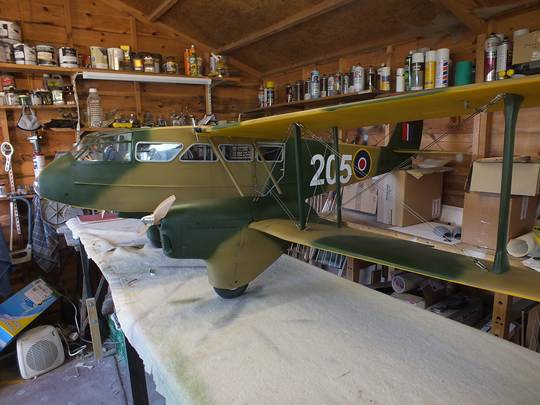

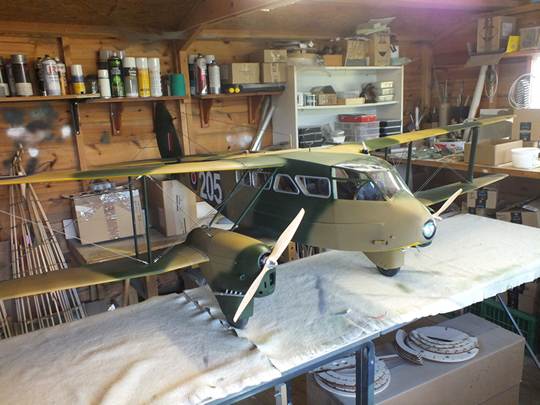

Just got round to finishing a Jerry Bates Dragon Rapide as the RAF `Dominie` Radio and Navigation Trainer.








Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline Dowmer
Lifetime Site Supporter
Lifetime Site Supporter
Camas, WA Scale Knut 		Joined: December/23/2008
National Flag of United States United States
Posts: 5082
IP Logged
Posted: October/25/2018 at 11:14am  Quote

Wow!!!!

Really nicely done.


__________________
Scratch building:
Travel Air Mystery Ship 1/4
Flying:
FW-190 D9 1/5 Scale
Bendix Special

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline t3adams
Site Supporter
Site Supporter
 Joined: May/01/2006
National Flag of Canada Canada
Posts: 64
IP Logged
Posted: October/25/2018 at 11:23am  Quote

That looks beautiful!

I still don't have the courage to attempt that build. Please share more details!

Terence


Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline Jirka Pavlicek
Basic Member
Basic Member
 Joined: August/07/2008
National Flag of Czech Republic Czech Republic
Posts: 275
IP Logged
Posted: October/25/2018 at 11:24am  Quote

Fantastic plane!!!
What about her equipment?
Mainly engines...
Regards
Jirka


__________________
Jirka Pavlicek, Husinec-Rez

WWW.MODELMAX.CZ

Flying :

Mick Reeves Sopwith 1 1/2 Strutter Laser 200V
Paolo Severin Bleriot XI Saito FG 33

On the bench :

DH-82a Tiger Moth 1/4

Back to Top  Printer Friendly Version  Profile  Search  Web

Avatar User Offline Steve_O
Site Supporter
Site Supporter
 Joined: October/29/2004
National Flag of United States United States
Posts: 3485
IP Logged
Posted: October/25/2018 at 1:40pm  Quote

Great job!
I built one of these years ago when RC Sweitzer was selling the plans and formed parts.
They fly wonderful.
Enjoy.


__________________
www.LeisureRcModels.com
50% Smith Miniplane
(2) Extra 300's
BUSA: Eindecker, SE5a, D-VII
Ziroli: Skyraider, Stuka
GP Ryan STA
Building: Ziroli P-40 Warhawk
Reidsville, NC

Back to Top  Printer Friendly Version  Profile  Search  Web

Avatar User Offline Tempest
Site Supporter
Site Supporter
 Joined: October/24/2003
National Flag of United States United States
Posts: 1473
IP Logged
Posted: October/25/2018 at 1:52pm  Quote

Absolutely lovely job.  Very nice color scheme choice as well.  Not one I have seen before on a Rapide.

Paul


__________________
Don Smith Hellcat
JReno Ju88 A1

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline Sparky
Lifetime Site Supporter
Lifetime Site Supporter
Head Curmudgeon 		Joined: February/10/2004
National Flag of United States United States
Posts: 7346
IP Logged
Posted: October/25/2018 at 9:57pm  Quote

Wow
What an introduction!
Welcome to the RCSB!
I hope you will share your particulars with us. I have all the bits to do the build and have always never felt up to the challenge. I know i can fly it if i can get it done.
Power is now looking like an electric version when I build mine.
I had the pleasure of riding one at Duxford in the summer of 2016.
Does your model have the undercamber wings?
Sparky


__________________
Brown County, Indiana
TopRC FW-190, Zenoah GT-80
Bates F6F Hellcat, Saito FG60-R3
Gamma RIP


Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline bluewell
Basic Member
Basic Member
 Joined: April/12/2018
National Flag of United Kingdom United Kingdom
Posts: 11
IP Logged
Posted: October/26/2018 at 4:50am  Quote


First I'd like to thank you for your comments, and will try to cover most of your questions.

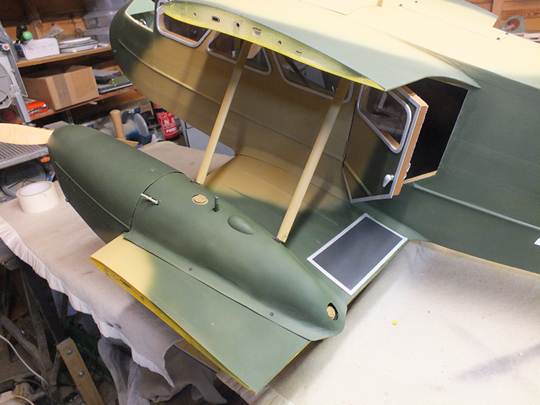

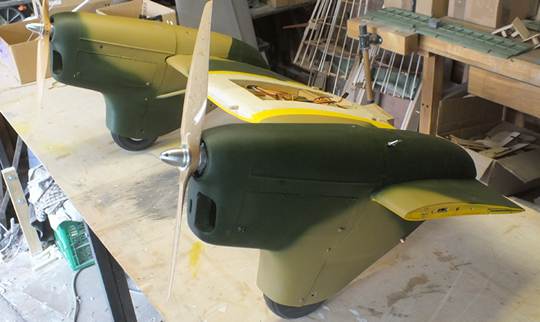

I decided that it will be electric, and each nacelle has 920kv brushless, 60A ESC and 5000MAH 4S 45C Graphene LiPo, 13x7 props CW and CCW, the LiPo is in each nacelle and the servo for the flaps.

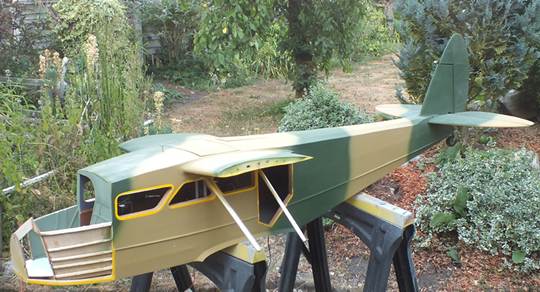

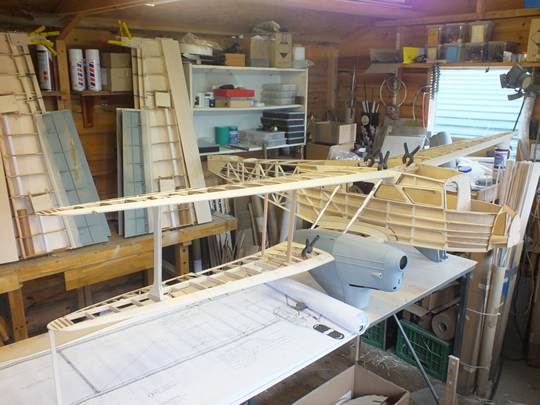

The plan called for a one piece lower wing at 8ft, made it a bit difficult to handle, and plug-in upper wings, so I split the lower wing into three, the centre with the nacelles I was going to fix to the fuselage, but later decided to convert back to bolting on. The upper wings I split and fixed to the fuselage ( you can see from the photos) .

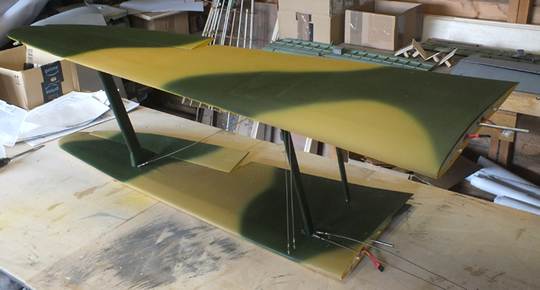

The outer part of the wings I could keep as one unit with the working I/16 flat wire rigging in place ( the plan was for wire ,`S` hooks and elastic bands to hold in place).

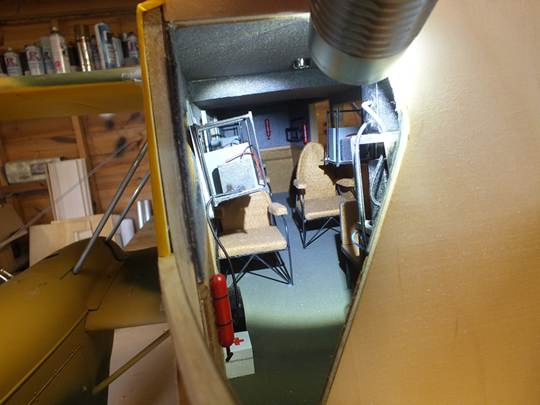

I made quiet a lot of small alterations as the build went along, having split the wings I have a servo for each aileron, I wanted to keep the main cabin clear for the seats and the navigation radios for the trainees, so Rx batteries are located in the centre of the wing part of the nacelle, also any batteries for the lighting (Nav lights/ nose landing light/ cabin lights)

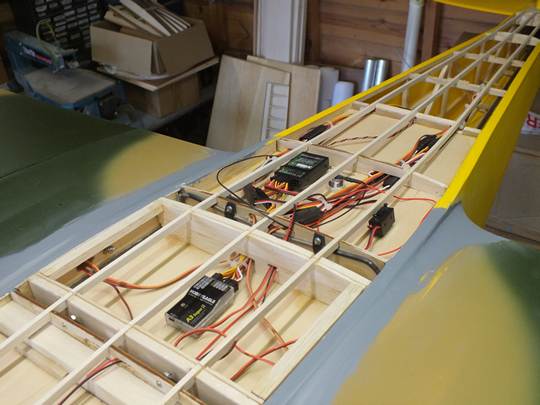

The Rx and gyro unit is in the centre part of the upper wing.






A bit about the `Dominie` as it was known by the RAF, first was delivered in 1939, 469 were built for the RAF mainly for radio navigation training and they carried out a wide range of communication roles, even fitted out to carry stretchers. The Dominie was retired in 1957 from service.
