	Chad Veich Lifetime Site Supporter	Joined: September/18/2003 United States Posts: 3277 IP Logged
Posted: March/26/2018 at 8:59pm		Quote

Agreed that the 1.20 will have all it can do to haul around 23 pounds but man what an outstanding build otherwise. Sparky and I think alike, the Moki 1.80 or 2.10 would be my first choice to replace the OS.

__________________
Chad Veich
www.cwvmodels.com
Scale Model Design & Construction

If it ain't broke, go fly it!

	Keith Site Supporter	Joined: February/29/2004 United Kingdom Posts: 557 IP Logged
Posted: March/27/2018 at 3:29pm		Quote

Thanks for the kind comments folks, Checked the weight again today, wings 6lb , fus.9.5 lb.

I'll need to check measurements for pos. engine replacement, not sure on the landing gear and as the company who made them for B.T. planes, I'll have to try and source some others.

Worse case scenario, will be making another fus. as per the plans.

Food for thought.

Keith

	Sparky Lifetime Site Supporter Head Curmudgeon	Joined: February/10/2004 United States Posts: 7346 IP Logged
Posted: March/27/2018 at 10:50pm		Quote

Before you go to the effort of building a new fuse I would try a fit the upgraded engine to the existing fuse.
Sparky

	Chad Veich Lifetime Site Supporter	Joined: September/18/2003 United States Posts: 3277 IP Logged
Posted: March/27/2018 at 11:05pm		Quote

Quote: Sparky

Before you go to the effort of building a new fuse I would try a fit the upgraded engine to the existing fuse.
Sparky

I agree with Sparky. The Typhoon has substantial area and a thick airfoil and may carry the weight much better than you expect. I know a lot of guys were flying the ESM Typhoon, which is just a hair smaller, at 20+ pounds and were reporting that performance was good. I had a somewhat smaller Sea Fury that flew very well with a wing loading of over 45 ounces per square foot and that was without the Tiffie's thick wing section. It very well could surprise you.

__________________
Chad Veich
www.cwvmodels.com
Scale Model Design & Construction

If it ain't broke, go fly it!

	kuhn Site Supporter	Joined: February/08/2009 Bulgaria Posts: 2983 IP Logged
Posted: March/28/2018 at 12:48am		Quote

Keith,

Congratulations on a superbly finished Tiffy.

From what I can remember my fiberglass fuselage weighs in at around 370'ish grams excluding the internal structure. That's around .81 pounds.

Typhoons have a long tail moment and it has to be kept light.

Is anyone who bought a fuselage from me willing to weigh it and post the weights here, as a benchmark exercise.

Keith if you do build another fuselage please let us know what the weight turns out to be.

__________________
Kuhn

If in doubt. Don't!
Flying: HIGH!
Building: Getting my Mo Jo back slowly to finish a few projects.

	kwik Lifetime Site Supporter	Joined: March/27/2004 Norway Posts: 4108 IP Logged
Posted: March/28/2018 at 3:25am		Quote

I've had 3 ESM Typhoons.

I had a Zenoah G-38 in it. Today I would have put a Saito FG-40 in it.

The FG-40 is a four-stroke. It turned out that with the G-38, the muffler became the biggest hazzle.

You could fly extremely slow with it, and have the finest of landings.

Even though it was heavy.

The biggest problem was to find the right place for the CG.
It was far too long forwards from the ESM plans, and when I finally got it as far back as it needed to be, I could land it slowly and graceously.

Mine weighted 8.2 kg and CG was at 10.5 cm.

I used the Sierra gear for the ESM Typhoon. Fantastic gear.

The aft of the ESM Typhoon was extremely thinly moulded. The fuse flexed if you tried to hold it in the wrong places.
It needs to be very thin to avoid too much weight, but should have been lined with some foam on the insides to stiffen it.

I have a video of it;

https://www.youtube.com/watch?v=OtH2NBnKy4o

__________________
Don't expect ,inspect.

Next :
Scale 1/6 Ju-88

In Hangar :
Meister 109
ESM Corsair 50cc
Vailly Fw-190
TF Fw-190
TF P-40
Sist Fw-190 D9
Skymaster F4
BH T33
C-Arf Spit

	Keith Site Supporter	Joined: February/29/2004 United Kingdom Posts: 557 IP Logged
Posted: April/01/2018 at 2:55pm		Quote

Thanks again for your input guys. I've looked at the various replacement engine options, dimensions/weight etc , and I think without too much retro fitting, I'm going with a zenoah 38. One reason being the 38 weighs 4lb, this is usable ballast , and will hopefully get me out of the balance predicament.

I will be looking to get the engine fairly soon, but waiting to see if a second hand one becomes available with carb bend and trumpet.

Kwik, do you by any chance have any pics of your Typhoon with the zenoah set-up, if so could you post pics.

All the best

Keith

	kwik Lifetime Site Supporter	Joined: March/27/2004 Norway Posts: 4108 IP Logged
Posted: April/01/2018 at 3:18pm		Quote

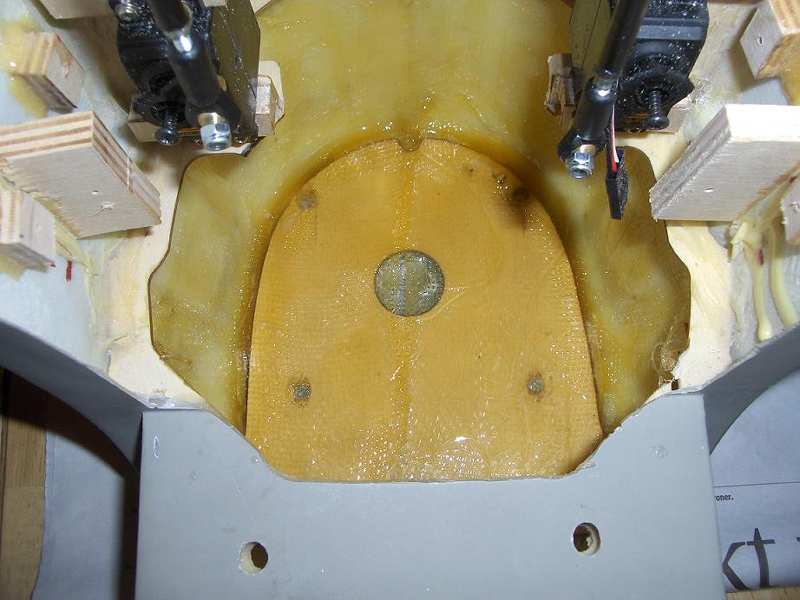

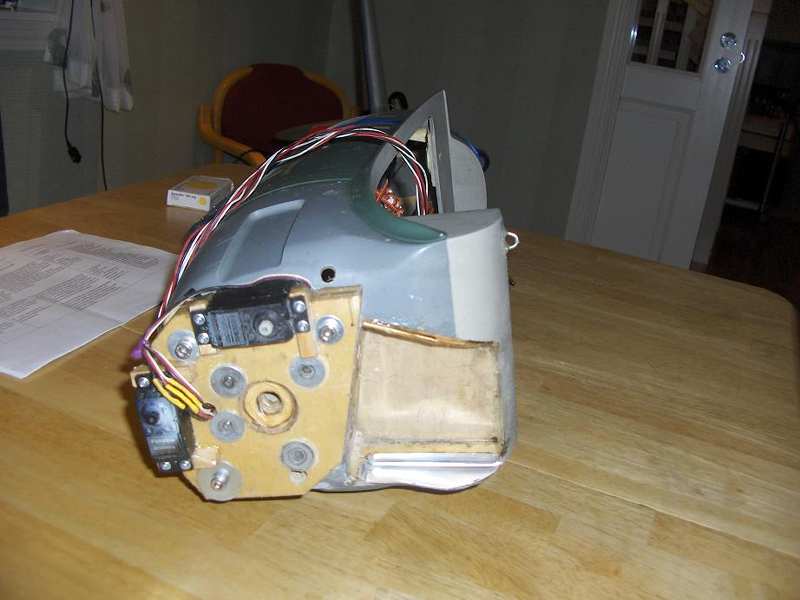

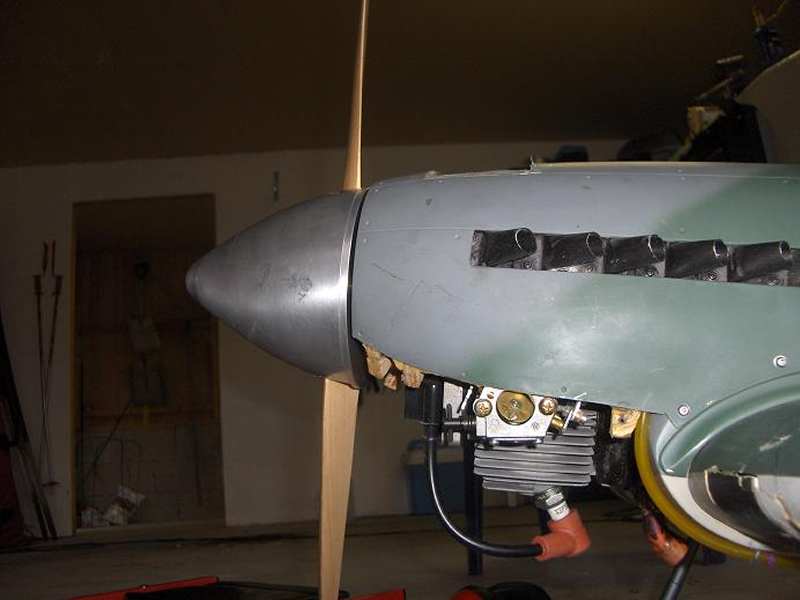

I have some photos....

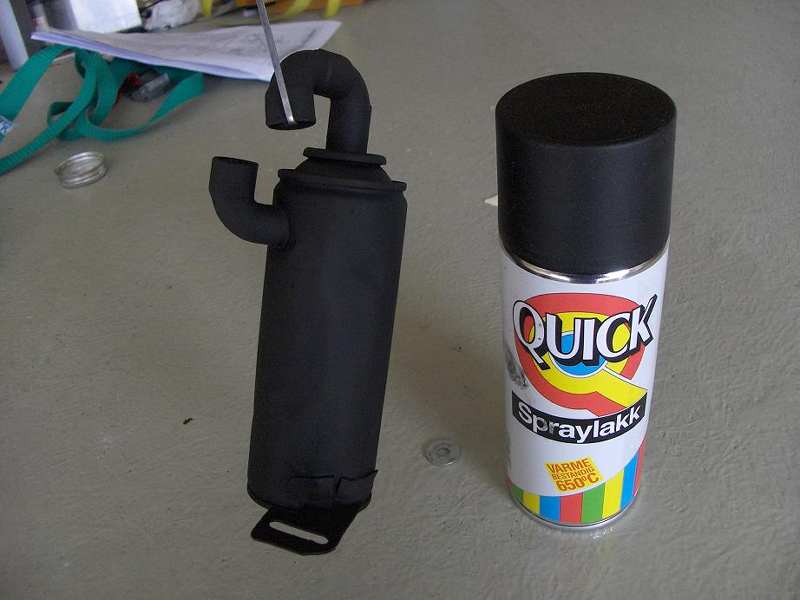

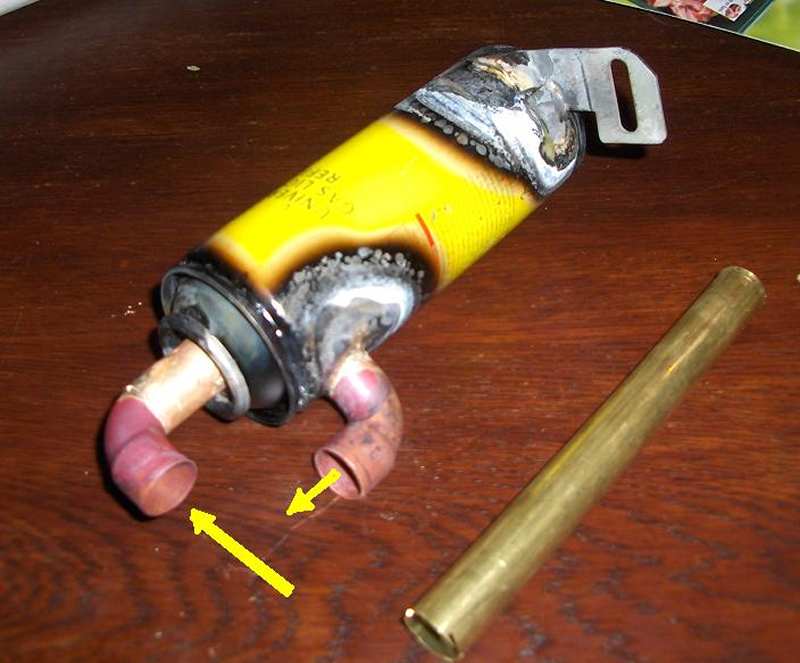

The muffler shaked apart in the silver dolder joints. The walls in the spraycan was too thin....

__________________
Don't expect ,inspect.

Next :
Scale 1/6 Ju-88

In Hangar :
Meister 109
ESM Corsair 50cc
Vailly Fw-190
TF Fw-190
TF P-40
Sist Fw-190 D9
Skymaster F4
BH T33
C-Arf Spit
