Posted: October/18/2020 at 10:46am  Quote

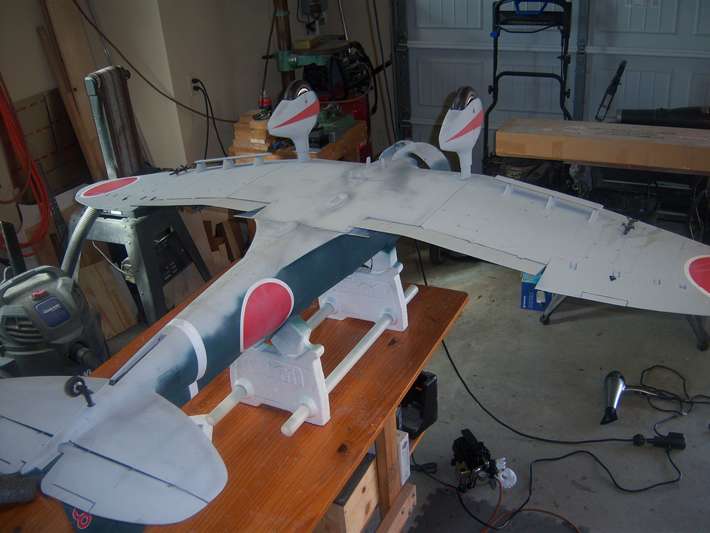

The Val is nearing completion.  Thought I'd drop a few shots of it.






Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline R8893
Site Supporter
Site Supporter
Joined: October/28/2004
National Flag of United States United States
Posts: 952
IP Logged
Posted: October/18/2020 at 11:41am  Quote

Excellent looking model. Specs please: scale, span, weight, power. I have had 1/9th and 1/7th Vals and both flew great. Your bigger model should do even better.

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline Bernie-TX
Site Supporter
Site Supporter
Joined: August/18/2020
National Flag of United States United States
Posts: 26
IP Logged
Posted: October/18/2020 at 11:54am  Quote

1/6 scale, 94 inch span, Saito FG-60R3 radial for power.  Haven't put it on the scale yet.

Glad to hear your two birds flew well since I'm a bit concerned about the elliptical wing.  Used the original NACA airfoil, and modified camber and twist on the outboard panels as closely as I could understand its written description.  Risk of being a tip-staller if it's not right which could make for very nasty habits.


Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline Sparky
Lifetime Site Supporter
Lifetime Site Supporter
Head Curmudgeon
Joined: February/10/2004
National Flag of United States United States
Posts: 7346
IP Logged
Posted: October/18/2020 at 1:04pm  Quote

Elliptical wings are not known to have tip stall issues. If you are concerned about dropping a wing, raise the ailerons one or two turns on the clevis or program the radio to do that. Effectively putting a twist in the wing. Once you are comfortable you can take it out. As big of a wing as you have I doubt you will have any issues.
I can help you with the Saito if need be.
Sparky

__________________
Brown County, Indiana
TopRC FW-190, Zenoah GT-80
Bates F6F Hellcat, Saito FG60-R3
Gamma RIP


Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline Bernie-TX
Site Supporter
Site Supporter
Joined: August/18/2020
National Flag of United States United States
Posts: 26
IP Logged
Posted: October/18/2020 at 2:16pm  Quote

Interesting piece of history:  The original Val had "a wicked tendency to snap roll during sharp turns and loops... traced to wingtip stall".  Designers spent a year and a half flight testing the plane and reshaping the wing (with balsa wood - maybe they were modelers) in an attempt to solve the problem.  The wing used a NACA 23012 (15.5% thickness) at the root that originally blended down to 7% thickness, 2% camber and 1 1/2 degree of washout at the tip.  The engineers eventually changed the blend to 2 1/2% camber with 2 1/2 degrees of twist.  That's the camber and twist I built into the wing of this model.

I appreciate any advice with the Saito.  This is my first model with a 'gas' engine.  All my previous powered model experience has been with glow engines.  I designed the model around the Saito because it packaged so nicely.  Unfortunately, some on-line comments about it have expressed reliability problems.  Have your experiences with this engine been positive?


Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline gary fuller
Lifetime Site Supporter
Lifetime Site Supporter
Joined: August/08/2005
National Flag of United States United States
Posts: 203
IP Logged
Posted: October/18/2020 at 3:13pm  Quote

Great looking model is it your own design?
I built a skinny scale Val that was published in the March 2007 issue on Model Aviation here is a link to the artical:http://library.modelaviation.com/ma/2007/3/skinny-sc ale-world-war-ii-val-200703
I had no problems with the elliptical wing Tip stalling or any other bad habits. I used a NACA 2415 airfoil and the wing loading was very light. I think the light wing loading was the major factor in the planes behavior.


__________________
Gary Fuller
Claremore Oklahoma

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline Bernie-TX
Site Supporter
Site Supporter
Joined: August/18/2020
National Flag of United States United States
Posts: 26
IP Logged
Posted: October/18/2020 at 5:34pm  Quote

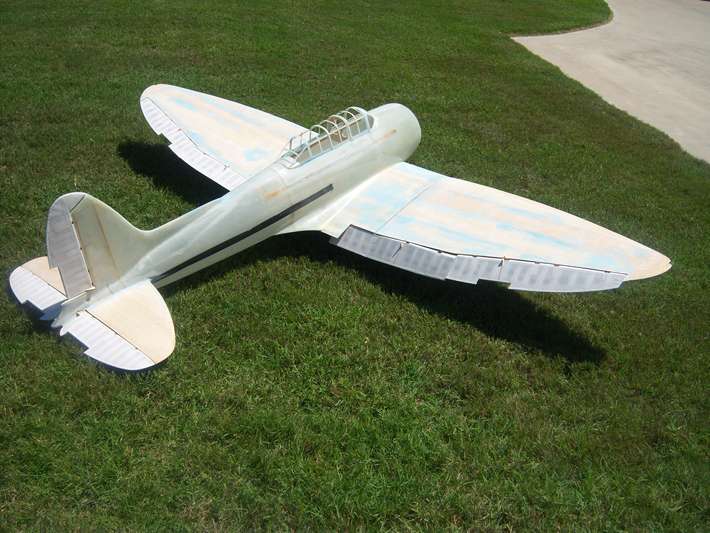

Yup, I drew this one up in 2018.  Wings and horizontal tail are built-up wood construction and everything else is molded glass.



Your Val looks like fun flyer.  Is it still flying?


Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline pgang
Site Supporter
Site Supporter
Joined: August/08/2013
National Flag of Australia Australia
Posts: 1355
IP Logged
Posted: October/18/2020 at 7:23pm  Quote

A great looking model of a very interesting subject.  Those Japanese aircraft certainly had a character of their own.  Hope it all goes well.

An unreliable Saito?  I wouldn't pay any attention to the internet forums.  Just follow the manual.  I'd bet be pretty confident in betting that they just have it tuned poorly, or there is something dodgy in their setup external to the engine.


__________________
Currently building:
1/4 RAF RE-8

Currently Flying:
Proctor VK 1/6 Camel
FlexInnovations Mamba 10
Sig Hummer
