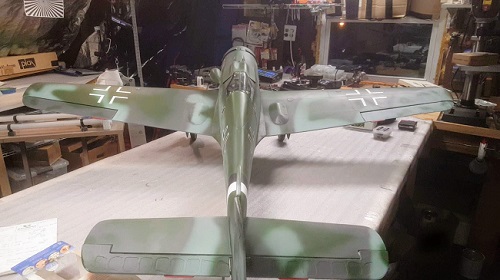

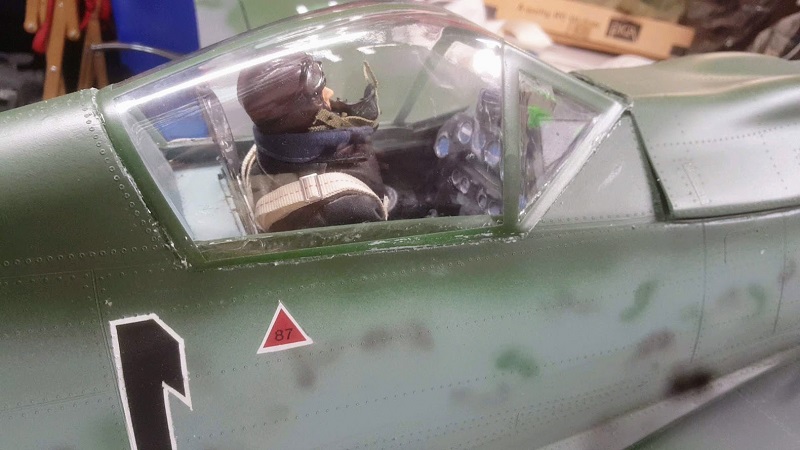

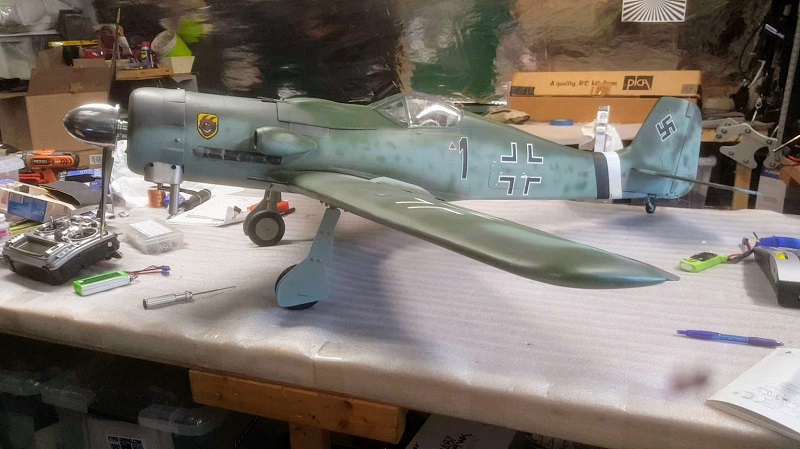

Author / Post proteus_x3 Basic Member Joined: December/13/2012 United States Posts: 20 IP Logged Posted: October/11/2018 at 2:14pm  Quote   Hi gang,love this website and I'm always learning something new.I do not consider myself  a scale builder,I do however like adding details to my aircraft. This Kit has been a "on" and "off" project since 2014 and it sat in a box for at-least 20 years before I started it,well it finally done and it came pretty good for my skill set.  Specs 65" wingspan early Pica FW-190 Dora, I finished it as a loosely looking TA-152-C3  Aircraft is fibber glassed .73oz 106 volan  with water-based polyurethane,added Dift wood sealant  on balsa so it didn't warp.   Rivets by Chad  Veich , cockpit is a hodge-podge of a 1/6 scale  IMP cockpit and parts I made. Power plant is a Evolution 20cc Engine. Landing gears are electric MFG. by Lando; struts and wheels are spare parts from Hangar 9 BF-109,perform a tail wheel mod for a more scale look. Installed flaps, they are  home made from 1/64 birch plywood and fiberglass cloth, same goes for the main gear doors. I'm at work now so i can only post a few photos,will post more later.  Cheers!! Rich         Back to Top  Printer Friendly Version  Profile  Search    BobH Site Supporter Joined: October/24/2003 United States Posts: 5906 IP Logged Posted: October/11/2018 at 5:03pm  Quote   Looks really nice   Back to Top  Printer Friendly Version  Profile  Search    prois Lifetime Site Supporter Joined: November/28/2015 United States Posts: 836 IP Logged Posted: October/11/2018 at 5:24pm  Quote   Really nice job.. __________________ Patrick Wentzville, MO.   Back to Top  Printer Friendly Version  Profile  Search    invertmast Site Supporter Joined: November/07/2008 United States Posts: 6284 IP Logged Posted: October/11/2018 at 8:20pm  Quote   Very nice!   Back to Top  Printer Friendly Version  Profile  Search    Sparky Lifetime Site Supporter Head Curmudgeon Joined: February/10/2004 United States Posts: 7346 IP Logged Posted: October/12/2018 at 12:28pm  Quote   It should fly like a pattern plane! Looking great. Sparky __________________ Brown County, Indiana TopRC FW-190, Zenoah GT-80 Bates F6F Hellcat, Saito FG60-R3 Gamma RIP   Back to Top  Printer Friendly Version  Profile  Search    proteus_x3 Basic Member Joined: December/13/2012 United States Posts: 20 IP Logged Posted: October/14/2018 at 9:59am  Quote   Gentleman,Thank you for your kind words.Cheers: Rich   Back to Top  Printer Friendly Version  Profile  Search    Enemy Ace Site Supporter Joined: July/10/2015 United States Posts: 152 IP Logged Posted: May/15/2019 at 11:05am  Quote   Great Job, it's good to see another completed Platt dora.   Back to Top  Printer Friendly Version  Profile  Search    proteus_x3 Basic Member Joined: December/13/2012 United States Posts: 20 IP Logged Posted: May/15/2019 at 8:35pm  Quote   Enemy Ace, thank you sir.I started the evo 20 the other day and removed electric ignition and installed a OS G5 glow plug the evo runs okay but I'm going to play with engine some more before I maiden it,weather in New Jersey has been poor lately. Rich    Back to Top  Printer Friendly Version  Profile  Search
