Posted: September/26/2016 at 1:36pm  Quote

Maybe, maybe but thats a personal preference......... the model could need some weathering. It's now factory fresh.

__________________
Teus

Building board:
Nieuport-11 + rotary engine

Flying:
1/4 Proctor Fokker E.III
1/3rd Fokker D-VII
1/3rd Nieuport-11

In maintenance:
a 1982 Busa build 1/3rd Sopwith Pup

Back to Top  Printer Friendly Version  Profile  Search  Web

Avatar User Offline Flatsguide
Basic Member
Basic Member
Joined: August/11/2009
National Flag of United States United States
Posts: 1723
IP Logged
Posted: September/26/2016 at 3:04pm  Quote

Beautiful workmanship.
Regards, Richard

__________________
Richard. Greeneville TN
I wish I could build as fast as I can buy stuff to build.
Building, Glenn Torrance Fok D.VII
Flying, BUSA 1/3 Pup

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline abufletcher
Site Supporter
Site Supporter
Joined: March/11/2004
National Flag of United States United States
Posts: 9800
IP Logged
Posted: September/26/2016 at 7:44pm  Quote

Quote: flartz
Stunning. Fantastic detail for 1/6 scale. Sean


No qualification needed.    This model (which happens to be 1/6 scale) has vastly more detail than almost all of the larger scale DVIIs I have seen.  Actually, this is true for all of the Hammerd's WWI models.  If fact, it almost seems to me that the larger people build, the less time and effort they put into details.

...Teus being the obvious exception!

(BTW, I'd also like to see a bit of "dirty" on your stunning models, but that's a matter of personal preference.)


Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline hammerd
Site Supporter
Site Supporter
Joined: July/22/2008
National Flag of United States United States
Posts: 854
IP Logged
Posted: September/27/2016 at 7:10pm  Quote

Peter Rake designs primarily small WWI types. He writes a monthly article for Flying Scale Models and a lot of the free plans included in the magazine are his designs. He has a website:

You can get most of his designs as short kits from:

Airspan is made by Solartex. It is unsealed and I use a product called Inkaid, applied to it, to allow printing on a desktop printer.
It's available under a different name in the US as "LW Tissue" from:

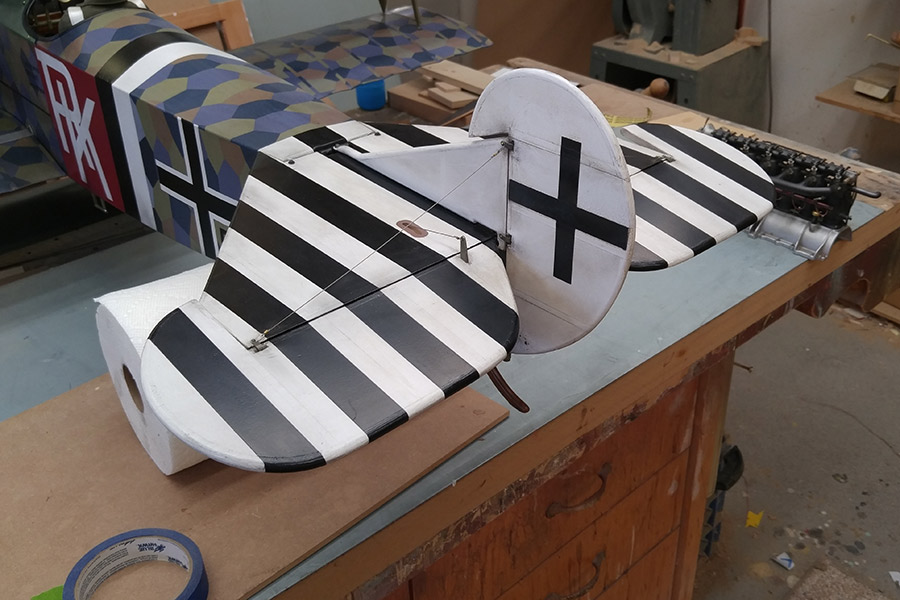

Not sure if the dirty remark was aimed at me , but the airplane is weathered and dirtied up, it just doesn't show up very well in the photos taken outside. It's subtle, but the overall impact is obvious.








Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline abufletcher
Site Supporter
Site Supporter
Joined: March/11/2004
National Flag of United States United States
Posts: 9800
IP Logged
Posted: September/27/2016 at 7:15pm  Quote

You're right that the weathering wasn't showing up in the other photos.  What are you techniques for doing the subtle smudging?

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline hammerd
Site Supporter
Site Supporter
Joined: July/22/2008
National Flag of United States United States
Posts: 854
IP Logged
Posted: September/27/2016 at 7:31pm  Quote

This is my process for making a plane look "lived in":
I start with a thinned application of dark acrylic paint, glazing liquid, and water. I just slop it on. This is actually more to accentuate the details than weathering. It gets a good wiping, leaving the mixture in the cracks and crevices. I leave it a little heavier around normally dirtier areas, like the engine and belly. I then use the same mixture (thinned heavily and toned a little for color change), to apply runs and streaks at places they would naturally occur. Lastly, I use pastel colors to add smudges and general dirt from ground handling. This is done using my fingers. since all of my planes are electric, I don't need to seal anything, which is great because sealing the weathering tends to make it all look homogeneous and unrealistic.



Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline abufletcher
Site Supporter
Site Supporter
Joined: March/11/2004
National Flag of United States United States
Posts: 9800
IP Logged
Posted: September/27/2016 at 9:17pm  Quote

Thanks!  Now that I look carefully at the outside photos, the weathering is also quite apparent.  I guess that's the measure of effective weathering, you don't notice it, until you look.  And, yes, there are some very definite advantages of electric scale modeling.

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline Daywalker
Lifetime Site Supporter
Lifetime Site Supporter
Mount Horeb, WI
Joined: January/16/2015
National Flag of United States United States
Posts: 672
IP Logged
Posted: September/28/2016 at 6:57am  Quote

Thank you for the information on the kit and designer, find myself staring at the photos of your model and wishing I had one just like it!  Beautiful build, my hat is off to you.

__________________
Frank

Building-
1/4 Proctor Nieuport 28
1/4 BUSA Fokker D.VII

Back to Top  Printer Friendly Version  Profile  Search

]
] ]
