Posted: December/06/2010 at 6:18am  Quote

Hi Phil !!

That looks great!

Where did you dad get them blown up from there?

I would love to see some more photos!!

Nice one !!

Tim


Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline p51p47
Site Supporter
Site Supporter
 Joined: October/10/2003
National Flag of United Kingdom United Kingdom
Posts: 4100
IP Logged
Posted: December/06/2010 at 7:21am  Quote

Just a local highstreet copy centre.................ideally, you need to have them scanned and enlarged digitally then reprinted as if you have them copied using one of the large 'roller' type photo copiers, this type of machine is well know to 'stretch' drawings, so distortions will develop.







__________________
Real planes are green, anything without guns is a target

Fighteraces
Warbirds & Accessories
Building & finishing materials
Custom building service
www.fighteraces.co.uk

Back to Top  Printer Friendly Version  Profile  Search  Web

Avatar User Offline p51p47
Site Supporter
Site Supporter
 Joined: October/10/2003
National Flag of United Kingdom United Kingdom
Posts: 4100
IP Logged

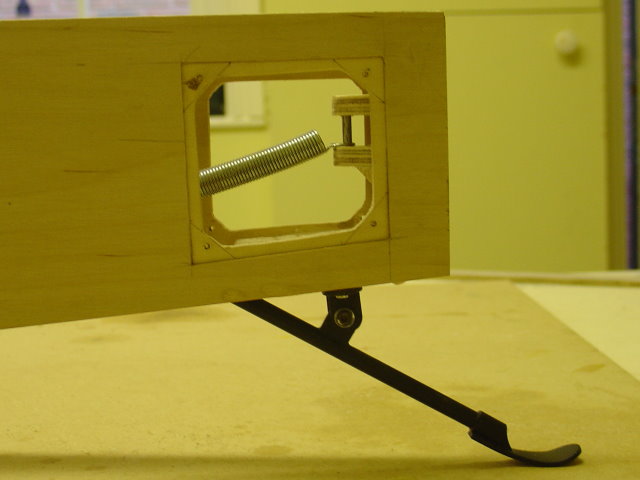

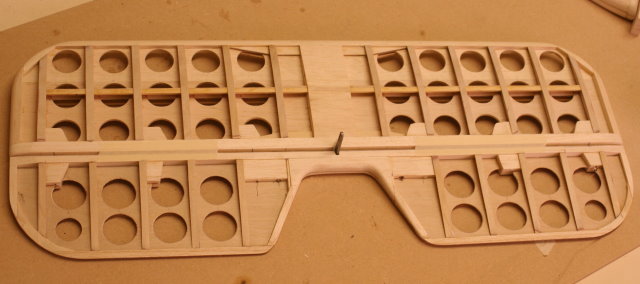

Posted: December/06/2010 at 7:24am  Quote







__________________
Real planes are green, anything without guns is a target

Fighteraces
Warbirds & Accessories
Building & finishing materials
Custom building service
www.fighteraces.co.uk

Back to Top  Printer Friendly Version  Profile  Search  Web

Avatar User Offline p51p47
Site Supporter
Site Supporter
 Joined: October/10/2003
National Flag of United Kingdom United Kingdom
Posts: 4100
IP Logged

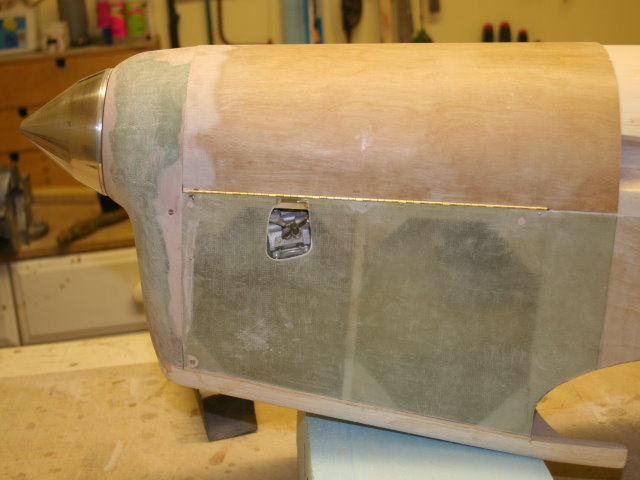

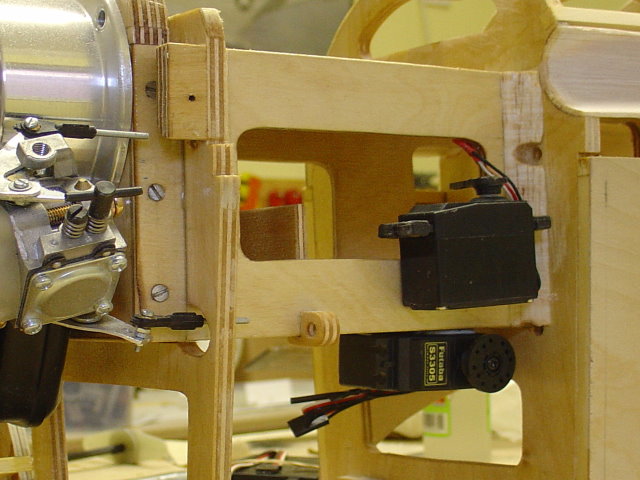

Posted: December/06/2010 at 7:26am  Quote







__________________
Real planes are green, anything without guns is a target

Fighteraces
Warbirds & Accessories
Building & finishing materials
Custom building service
www.fighteraces.co.uk

Back to Top  Printer Friendly Version  Profile  Search  Web

Avatar User Offline Sunny1
Basic Member
Basic Member
 Joined: November/27/2008
National Flag of Australia Australia
Posts: 91
IP Logged
Posted: December/06/2010 at 7:50am  Quote


Phil,

Your +10% model looks good. Watch out for tail heavy. I had to add almost 850 grams to balance it.

Mine is waiting for certification (because it is over 7kgs) and maiden flight in a couple of weeks time.

Flight report to follow.



Regards,

Sunny



Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline p51p47
Site Supporter
Site Supporter
 Joined: October/10/2003
National Flag of United Kingdom United Kingdom
Posts: 4100
IP Logged
Posted: December/06/2010 at 8:13am  Quote

Currently, the complete model with engine, tank, all servos, undercarriage etc......minus covering & paint is 24lb (10.9kg's)...................perfectly acceptable on a 92" wing.

Phil

__________________
Real planes are green, anything without guns is a target

Fighteraces
Warbirds & Accessories
Building & finishing materials
Custom building service
www.fighteraces.co.uk

Back to Top  Printer Friendly Version  Profile  Search  Web

Avatar User Offline Sunny1
Basic Member
Basic Member
 Joined: November/27/2008
National Flag of Australia Australia
Posts: 91
IP Logged
Posted: January/26/2011 at 6:02pm  Quote


Hi everyone,

The Miles Hawk had its maiden flight last Saturday and it flew extremely well. Very smooth and steady. According to the expert test pilot, it felt very light and stable. All it needed was a little up elevator trim. The engine power was adequate but not excessive.

For all those currently building this model, be assured that it will fly beautifully, if built well.

Regards,

Sunny



Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline p51p47
Site Supporter
Site Supporter
 Joined: October/10/2003
National Flag of United Kingdom United Kingdom
Posts: 4100
IP Logged
Posted: April/04/2013 at 5:09pm  Quote

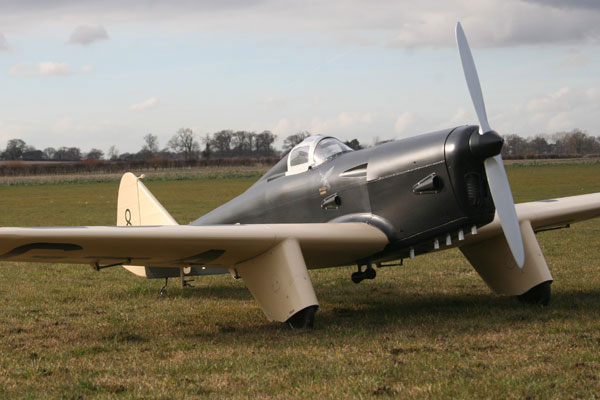

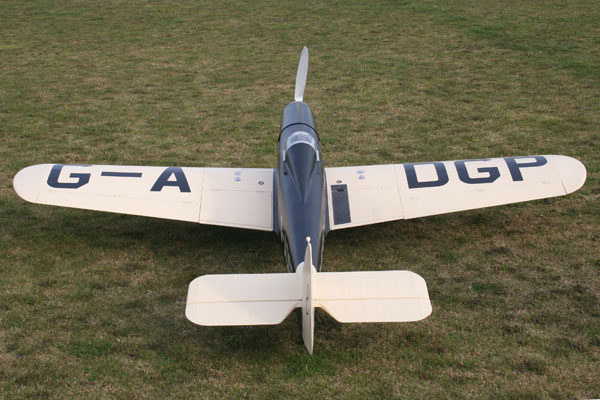

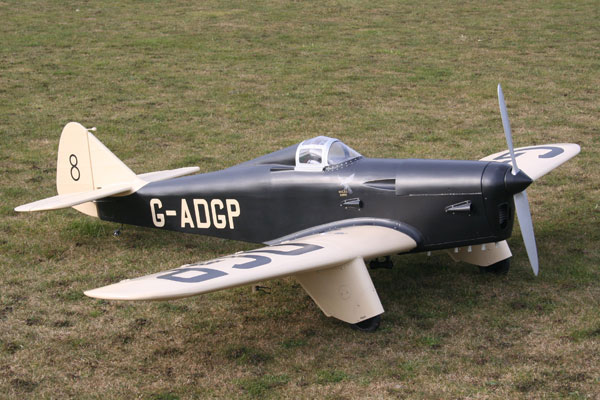

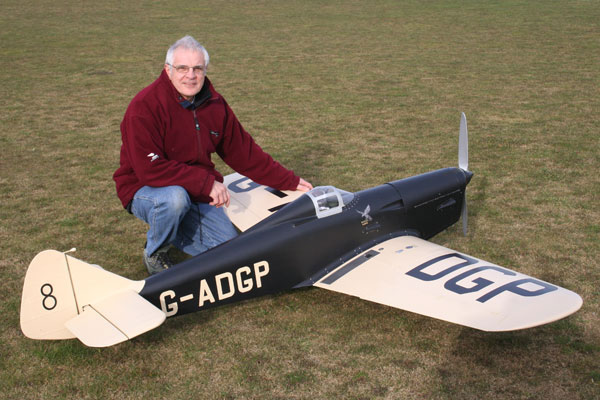

It's been a long time coming, but Dad has finally finished his Speed 6 (10% enlarged Phil Kent plan).



Covering was SIG Koverall followed by 6 x 50/50 thinned coats of non-shrinking dope. I lent my hand to the project with the painting......this used Warbirdcolors for the colour (RAF Black over grey cellulose primer, & WW1 Linen over white cellulose primer) with a Klass kote 'satin' clear coat over the top.

He's re-engined with a DA50 as the AUW was creeping up and he thought it may struggle a bit on the original ZG38. 1st engine runs have been carried out without drama......test flights are due when the English weather finally decided to sort itself out.









Phil
