Posted: June/28/2013 at 7:09am  Quote


All,



I've been looking at the miles speed six for my next project using the phil kent plans. The plans quote 1/4 @ 86" however the fullsize has a wing span of 33 feet making 1/4 scale 99" can anyone shed some light which is correct...???



Cheers



Dave



__________________
Excellence is not a skill. It is an attitude.

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline p51p47
Site Supporter
Site Supporter
 Joined: October/10/2003
National Flag of United Kingdom United Kingdom
Posts: 4100
IP Logged
Posted: June/28/2013 at 7:28am  Quote

Dave

After a quick hunt, the 33ft wing is quoted for the Miles Hawk Major........IIRC, the Speed 6 was based on this basic design, but obviously intended for racing. I've never looked into it too much, but was the standard wing clipped a little for racing hence a shorter span maybe?

Phil



__________________
Real planes are green, anything without guns is a target

Fighteraces
Warbirds & Accessories
Building & finishing materials
Custom building service
www.fighteraces.co.uk

Back to Top  Printer Friendly Version  Profile  Search  Web

Avatar User Offline larry pierce
Basic Member
Basic Member
 Joined: March/07/2005
National Flag of Canada Canada
Posts: 352
IP Logged
Posted: June/28/2013 at 8:49am  Quote

Hello There:

 I would appear that two versions where developed the original M.2E derived from the Hawk Major
 with a 33 ft. span and later the one derived from the Sparrow Hawk. In this version the center section
was removed and the outer wing attached to the side of the Fuse.








__________________
Keeps me young

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline p51p47
Site Supporter
Site Supporter
 Joined: October/10/2003
National Flag of United Kingdom United Kingdom
Posts: 4100
IP Logged
Posted: June/28/2013 at 9:46am  Quote

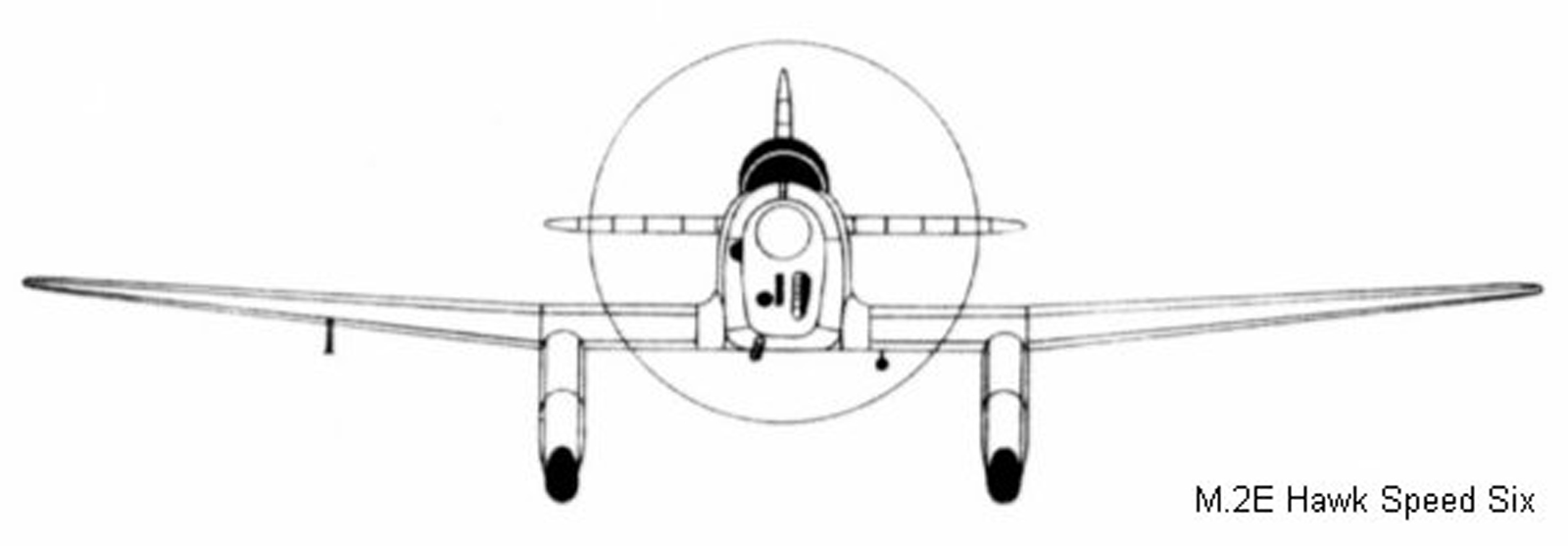

That head on line drawing is not correct for the Speed 6 (I thought only 1 was built?)......it has no 'flat' centre section with the landing gear. The only flat section of wing is that under the fuz....the dihedral is from the fuz side outwards.

__________________
Real planes are green, anything without guns is a target

Fighteraces
Warbirds & Accessories
Building & finishing materials
Custom building service
www.fighteraces.co.uk

Back to Top  Printer Friendly Version  Profile  Search  Web

Avatar User Offline larry pierce
Basic Member
Basic Member
 Joined: March/07/2005
National Flag of Canada Canada
Posts: 352
IP Logged
Posted: June/28/2013 at 10:34am  Quote

Hello There:


Miles built 3 different Speed six's.
http://shortfinals.wordpress.com/2010/11/28/racing-for-glory -miles-m2l-hawk-six/

 Larry


__________________
Keeps me young

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline 007dave
Site Supporter
Site Supporter
 Joined: May/29/2008
National Flag of United Kingdom United Kingdom
Posts: 20
IP Logged
Posted: June/28/2013 at 11:38am  Quote

Wiki's take on things:

Looks like the different Mk's are just engine and seat configs .... Interesting guess I could go and measure the full size then I'd know for sure.


Design and development[edit]

The Hawk Major was designed as a successor to the Miles Hawk by F.G. Miles. Main changes were a de Havilland Gipsy III engine, metal (instead of wood) engine mount, and trousered undercarriage. The prototype (designated M.2F Hawk Major) was first flown in 1934 and went on to second place in the 1934 King's Cup Race at an average speed of 147.78 mph. A racing version was developed as the one-off single-seat M.2E Gipsy Six Hawk with a 200 hp de Havilland Gipsy Six engine. The production Hawk Major had the 130 hp de Havilland Gipsy Major engine. The aircraft sold well to private owners, including two that were fitted with smoke generators to allow them to be used as skywriters. An improved version (the M.2H) with a trailing edge flap replaced the M.2F on the production line. A number of special one-off racing versions were also built.[1] In October 1934, Squadron Leader Malcolm Charles McGregor flew a Hawk Major from Mildenhall, England to Melbourne, Australia in 7 days, 15 hours while competing in the MacRobertson Air Race.[2] In 1936 Miles Hawk VI, G-ADOD was entered into the Schlesinger Race from Portsmouth to Johannesburg and flown by A. E. Clouston who nearly made it all the way to Johannesburg but had to make a forced crash landing due to engine trouble 150 miles south of Salisbury.[3]
In 1935 an improved version for training use was developed as the Miles Hawk Trainer.
Variants[edit]

M.2E Gipsy Six Hawk (later Hawk Speed Six)
Single-seat racing version powered by a 200 hp de Havilland Gipsy Six engine, one built.
M.2F Hawk Major
Production version powered by a de Havilland Gipsy Major engine.
M.2G Hawk Major
Three-seat cabin version, one built.


The Miles M.2L Hawk Speed Six wearing racing No.96 at Leeds (Yeadon) Airport in May 1955
M.2H Hawk Major
Production version powered by a de Havilland Gipsy Major engine.
M.2K Hawk Major
Powered by a 105 hp Cirrus Hermes II engine, one built
M.2L Hawk Speed Six
Powered by a 200 hp de Havilland Gipsy Six 1F engine, one built
M.2M Hawk Major
Three-seat version powered by a de Havilland Gipsy Major engine, two built.
M.2P Hawk Major
Dual control version powered by a de Havilland Gipsy Major engine, three built.
M.2R Hawk Major de Luxe
Racing version powered by a de Havilland Gipsy Major engine, two built.
M.2S
Long-range version Powered by a 150 hp Blackburn Cirrus Major engine
M.2T
Long-range single-seater powered by 150 hp Blackburn Cirrus Major engine, two built.
M.2U Hawk Speed Six
Racing version powered by a de Havilland Gipsy Major Six R engine, one built.
Survivors[edit]

M.2L Speed Six registered G-ADGP is airworthy in 2009 and based at White Waltham Airfield near Maidenhead, Berkshire.
Operators[edit]

United Kingdom
Royal Air Force
Specifications (M.2F)[edit]

General characteristics
Capacity: Two
Length: 24 ft 0 in (7.32 m)
Wingspan: 33 ft 0 in (10.06 m)
Height: 6 ft 8 in (2.03 m)
Wing area: 169 ft2 (15.70 m2)
Empty weight: 1,150 lb (522 kg)
Gross weight: 1,850 lb (840 kg)
Powerplant: 1 ? de Havilland Gipsy Major, 200 hp (149 kW)
Performance
Maximum speed: 150 mph (241 km/h)
Range: 560 miles (901 km)
Service ceiling: 20,000 ft (6100 m)
Rate of climb: 1,000 ft/min (5.1 m/s)
See also[edit]


Dave

__________________
Excellence is not a skill. It is an attitude.

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline larry pierce
Basic Member
Basic Member
 Joined: March/07/2005
National Flag of Canada Canada
Posts: 352
IP Logged
Posted: June/28/2013 at 5:29pm  Quote

Hello There:

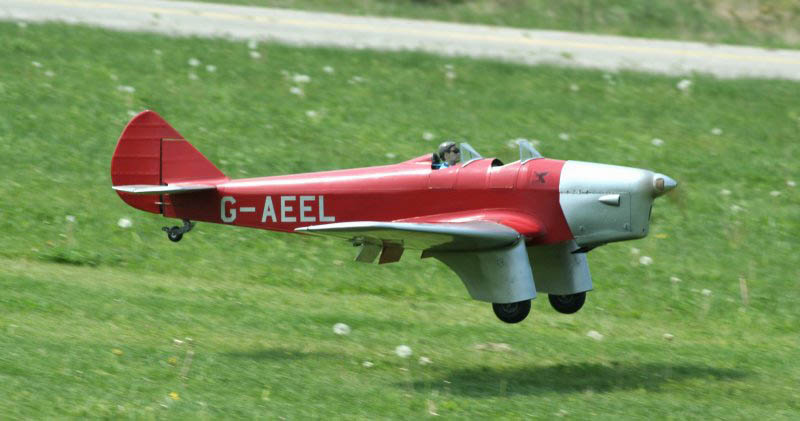

 That about covers it good job. Miles M2-X on final



 Larry
