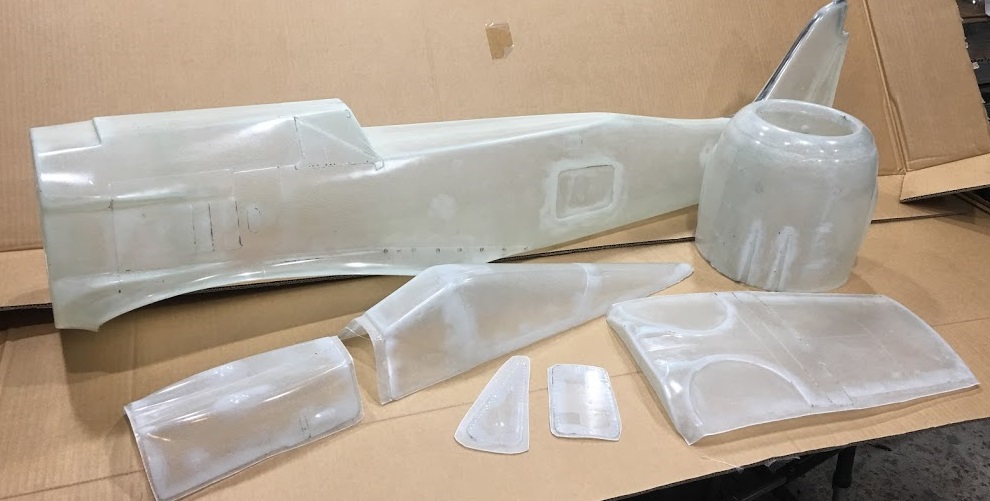

thanks for the reply, i am building the kit A8, it is not clear nor mentioned how you drive the elevators, the flaps built as per plan leaves a gap between the te of the flap and the te of the wing, there is also no information on the retract plate, although it does not help that this part F6 and F7 i think is missing any images you have would be great i also have some parts that the etched part numbers on have been worn off.  as there is no part diagram supplied (if this was in the kit i did not get it) i am struggling to identify the parts

I am Just finishing off the flap and aileron installations

thanks in advance for your assistance

smallflyer,

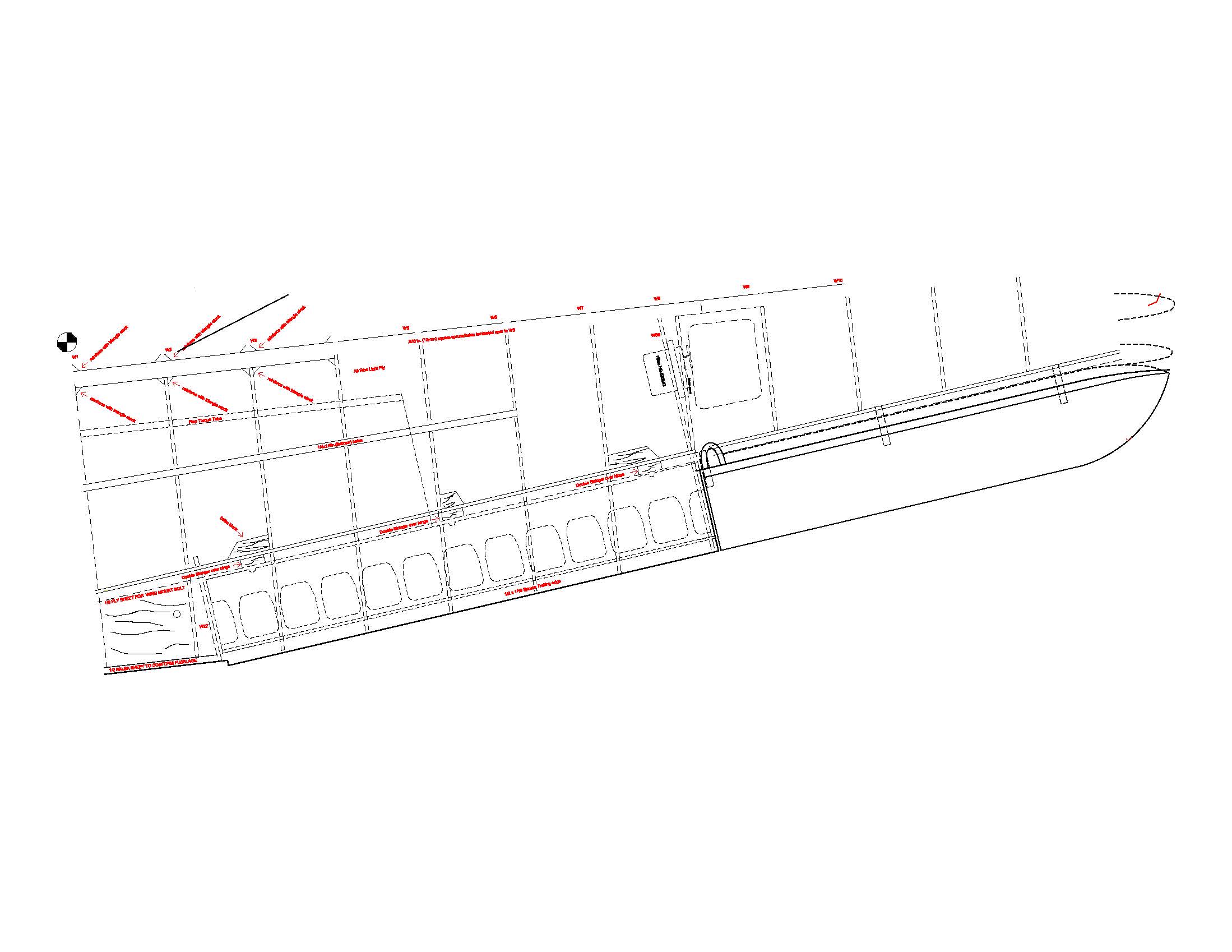

the T.E. of the flap does not meet the T.E. of the wing.

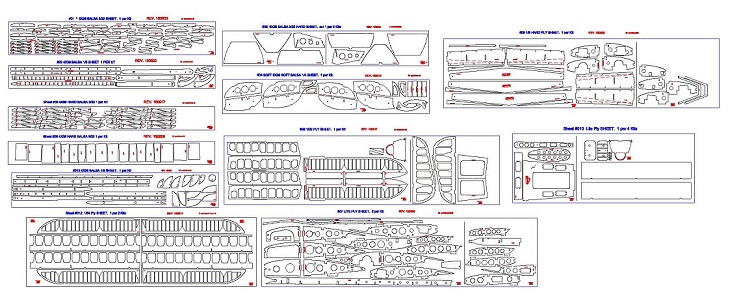

By the retract plate you mean the mounting bearers?  The wing plan shows the location. The kit supplies a servo tray for elevator. If you received the kit from Fliteskin, you should have received plans a a list of parts like the one below.

I hope this helps.

JG

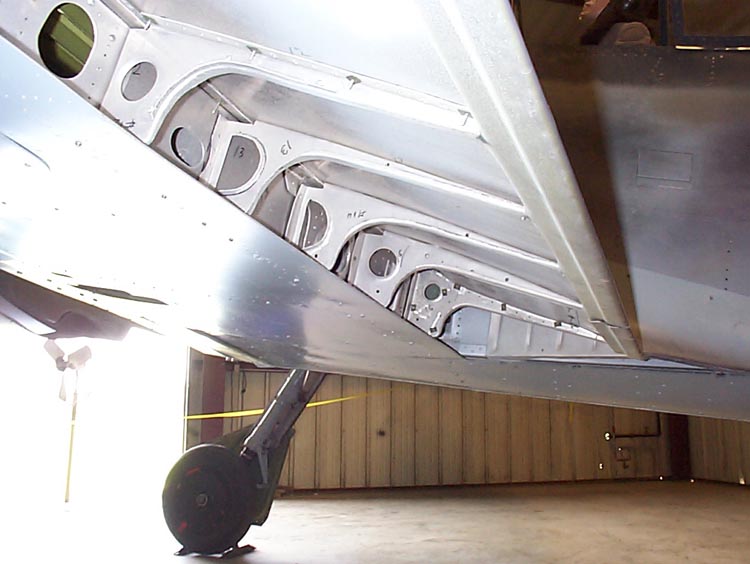

some images i have show there is no gap between flap te and wing te  http://www.ipmsstockholm.se/home/wp-content/uploads/2012/05/ detail_fw190a8_13.jpg

The plan shows a spruce trailing edge behind the flap.
