Posted: June/20/2019 at 7:43pm  Quote


Hi, guys!  Glad to be re-joining the fold.  I signed on some time ago when I began to construct my quarter-scale Vaillencourt L-19.  She's being glassed now and soon I will enter a happy show 'n' tell period with you.

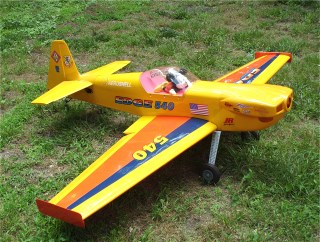

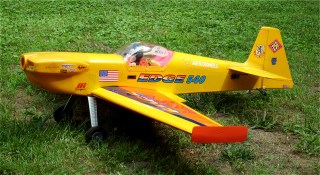

Right now though, I could use some help in identifying an ARF purchased from an estate.  It's obviously an Edge 540 but came with no sort of paperwork.  It has a 74" wing span.  I'm trying to identify who manufactured the ARF. so that I can find a copy of the builder's manual. I don't want to guess the size engine needed, C.G. location, control travel, etc. I replaced the wingtips and covered them with red Monocote.  The previous owner festooned it with stickers






Back to Top  Printer Friendly Version  Profile  Search  Web

Avatar User Offline J_Whitney
Moderator Group
Moderator Group
Joined: November/10/2003
National Flag of United States United States
Posts: 7409
IP Logged
Posted: June/20/2019 at 8:01pm  Quote

Hi Jerry - welcome back!

The general guidelines for posting pics are on this page:  LINK - about halfway down under the Posting header.
Once you reduce the file size and insert your first picture, make sure the cursor is on the right-hand side of your pic and press enter a couple of times.  Likewise after you enter text and befor the picture.

This stacks the pictures vertically and makes the narrative easier to follow.  When in doubt, use the "Preview Post" button just below the reply box - that will show you how your post will look.


__________________
Jeff
Castro Valley, CA
The essential paradox of our democracy is that our warriors fight and die for our right to dispute the cause for which they are fighting and dying.
Let me know if I can help

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline kuhn
Site Supporter
Site Supporter
Joined: February/08/2009
National Flag of Bulgaria Bulgaria
Posts: 2984
IP Logged
Posted: June/21/2019 at 12:06am  Quote

Jerry.

Rule of thumb.

60" wingspan takes a 60 cu. in. motor (10 cc)

I'd stick an OS 61 in it.

It's an aerobatic plane. Get as much throw as you can on the control surfaces if you're going to fly it as such.


__________________
Kuhn

If in doubt. Don't!
Flying: HIGH!
Building: Getting my Mo Jo back slowly to finish a few projects.

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline Boltman
Site Supporter
Site Supporter
Joined: April/13/2006
National Flag of Australia Australia
Posts: 335
IP Logged
Posted: June/21/2019 at 2:27am  Quote

Quote: Skyflyer


It's obviously an Edge 540 .......

The previous owner festooned it with stickers



You have been mislead. The only thing Edge 540 there is the stickers!

It is a Cap 230 or 232.
I would power it with either a 120 2 stroke glow or 20cc petrol or 30cc if you like lots of power.
Google will find you a CofG calculator, start out at about 25% and work back by feel.
Re the control throws go easy on the elevator. Caps have been known to tip stall viscously unless light, or with a rearward CofG or with too much elevator.
Ease your way into the setup and it should be a ball of fun.
Cheers!
Mick

__________________
Flying:
P-47 Composite DLE55
CARF P-47 DLE120
Sig 1/3 Spacewalker DLE35
Krill Extra 330sc DLE130
Building:
All Composite 1/4 Scale CAC Boomerang - 108" Span

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline kuhn
Site Supporter
Site Supporter
Joined: February/08/2009
National Flag of Bulgaria Bulgaria
Posts: 2984
IP Logged
Posted: June/21/2019 at 5:50am  Quote

Ignore every thing I said !

__________________
Kuhn

If in doubt. Don't!
Flying: HIGH!
Building: Getting my Mo Jo back slowly to finish a few projects.

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline Skyflyer
Basic Member
Basic Member
Joined: October/15/2016
National Flag of United States United States
Posts: 36
IP Logged
Posted: July/01/2019 at 8:55pm  Quote


I've scoured the market trying to find which company made this ARF…and have failed miserably.  I think Boltman might be right...it does look more like a Cap 232, despite the graphics shouting: "I'm an Edge 540!"  None of the 540s I've seen have swept wings...or such wingtips

 I'm hesitant to hang a new Saito 180 onto a plane without such basic knowledge as CG location.  Google may have a formula for approximating C.G., but math has never been my forte.  I don't want it to be my down-fall (pun)  now.  Thanks for the help, gents!



Back to Top  Printer Friendly Version  Profile  Search  Web

Avatar User Offline Appowner
Site Supporter
Site Supporter
Joined: August/30/2010
National Flag of United States United States
Posts: 1526
IP Logged
Posted: July/02/2019 at 5:59am  Quote

You said the Wing span is 74".  What is the cord at both the root and tip and how far behind the root does the tip sweep back?  With that info someone here should be able to figure a CG for you.
